PROJECT HS01

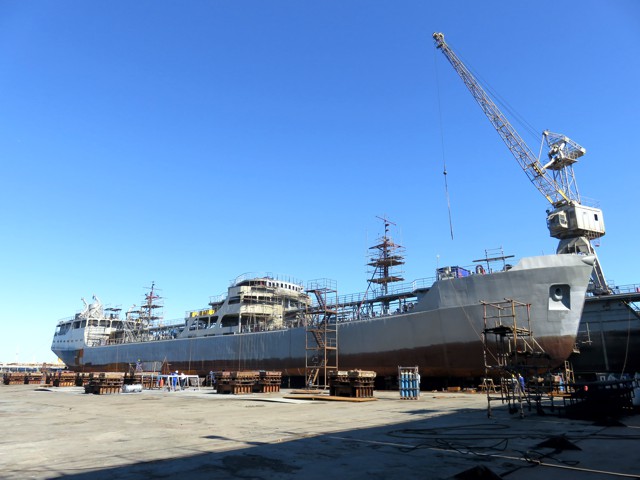

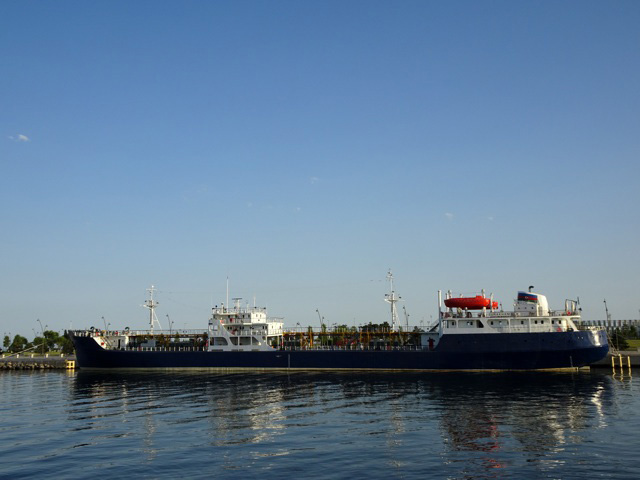

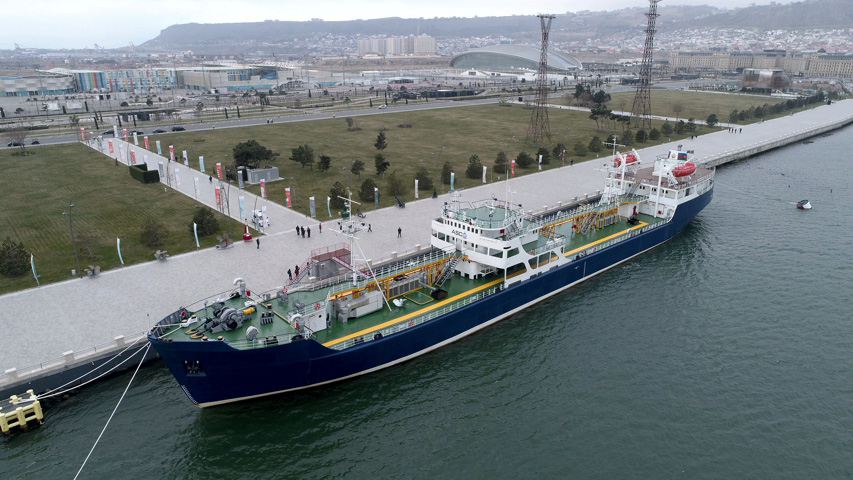

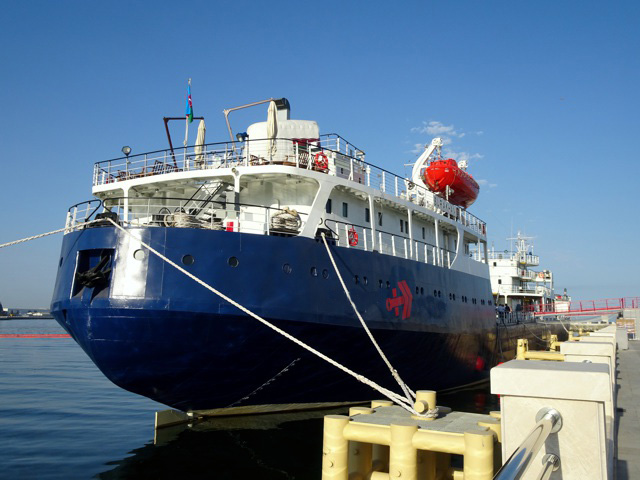

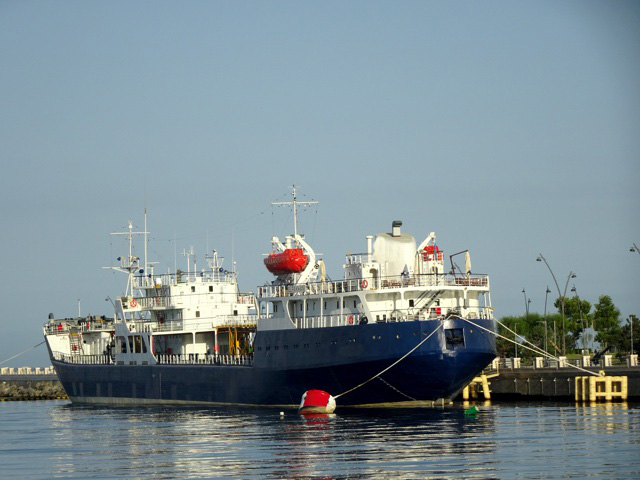

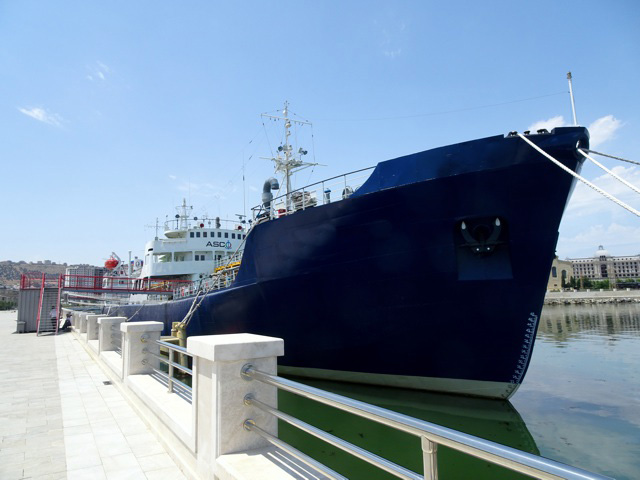

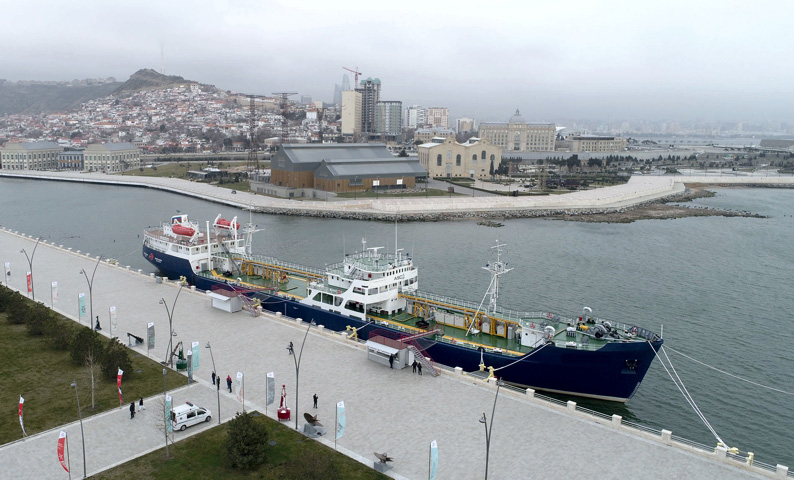

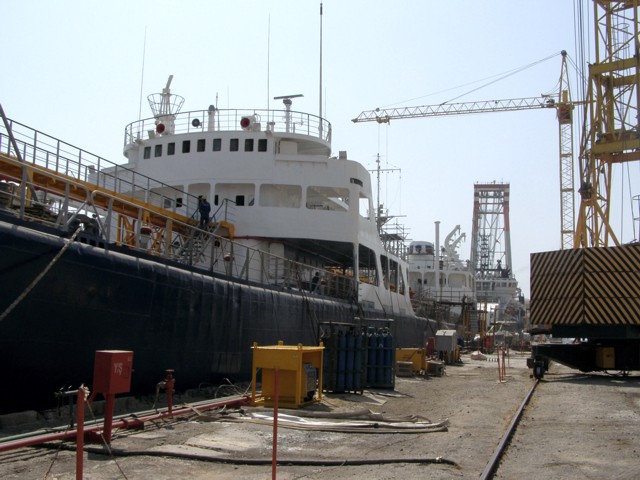

Ship - museum based on the tanker project 566 b

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20

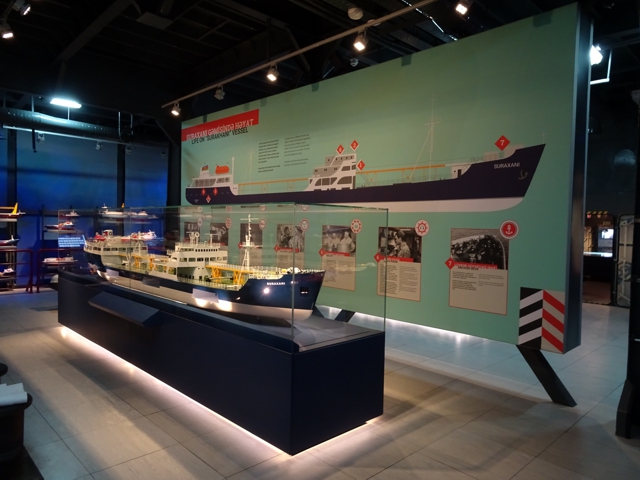

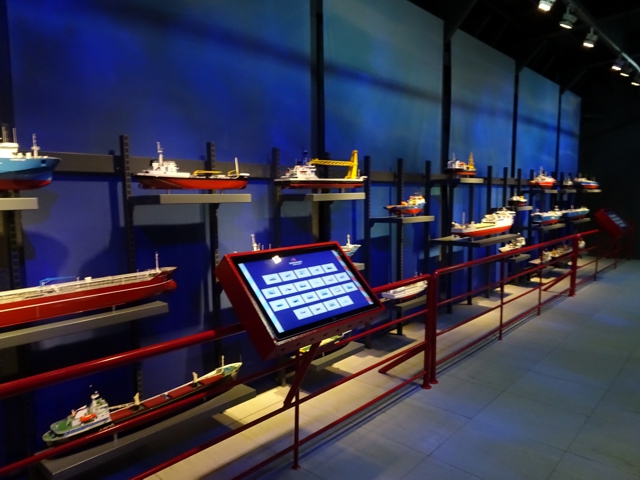

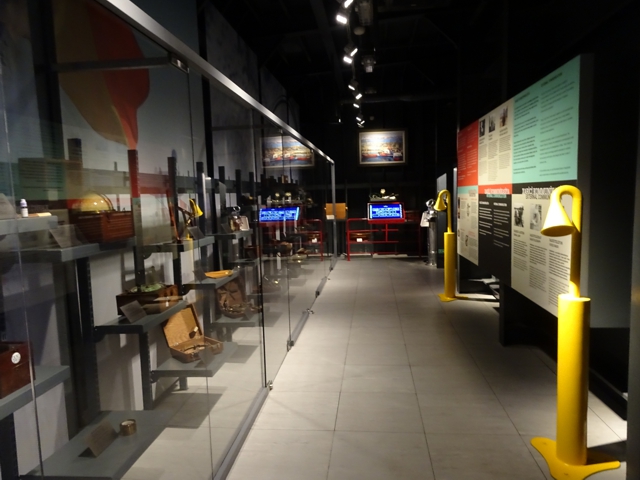

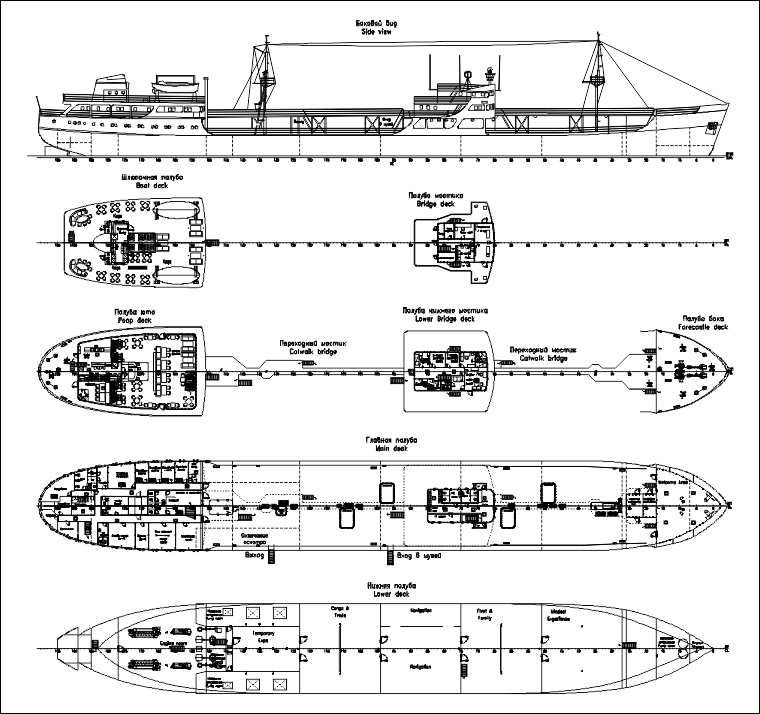

Purpose - accommodation of museum expositions and use as a floating restaurant without permanent residence of the crew and attendants on board. The following museum exhibits are on board the ship:

Dry section;
Compartments:
- fr. 7-26 (fore platform);
- fr. 27-51;
- fr. 51-75;
- fr. 75-99;
- fr. 99-123;

  1. cargo pump room;

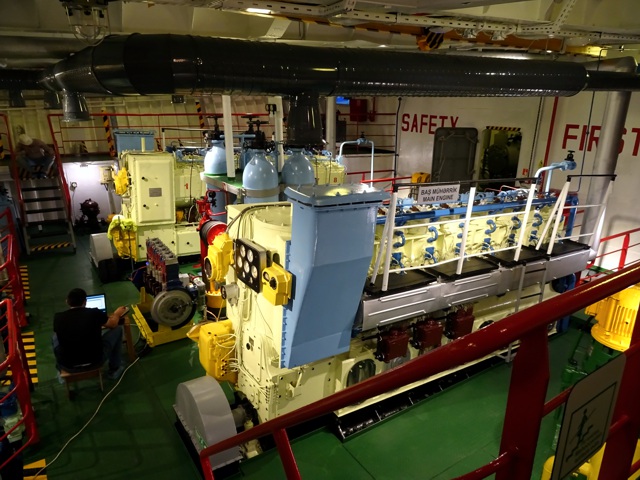

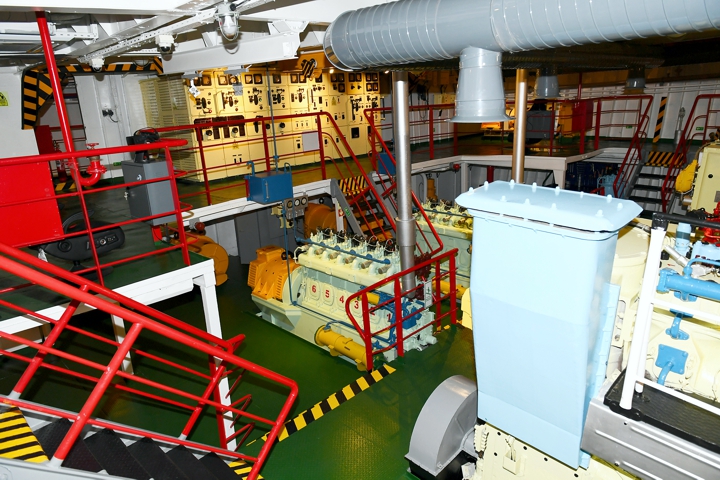

  2. engine room;
  3. boiler room;
  4. steering room;

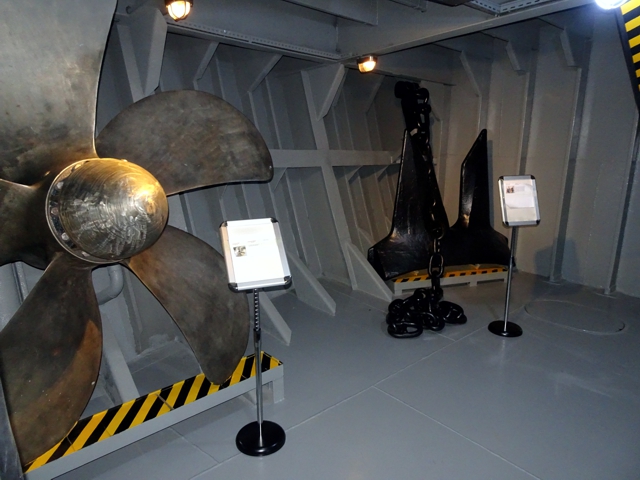

  5. fore section;
  6. red corner;
  7. mess-room;
  8. crew's mess-room with pantry;
  9. galley;

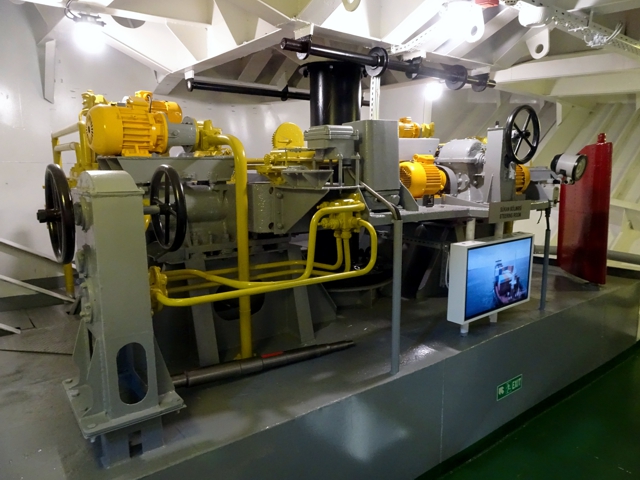

  10. stern anchor and mooring equipment;

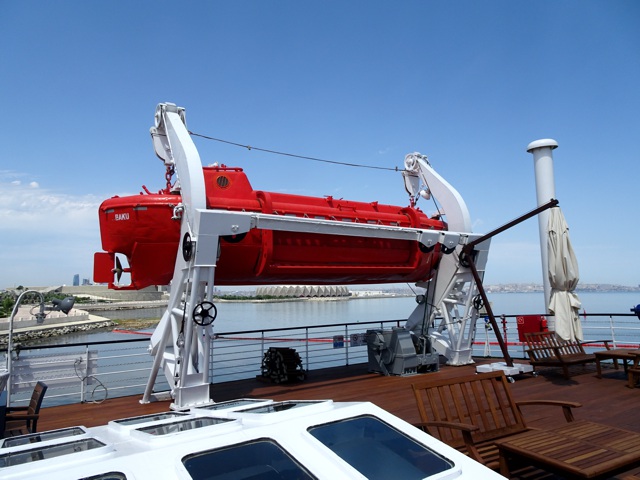

  11. lifeboats;
  12. masters's cabin;
  13. first mate cabin;
  14. 2nd mate cabin;
  15. 3rd mate cabin;
  16. radio-operator cabin;

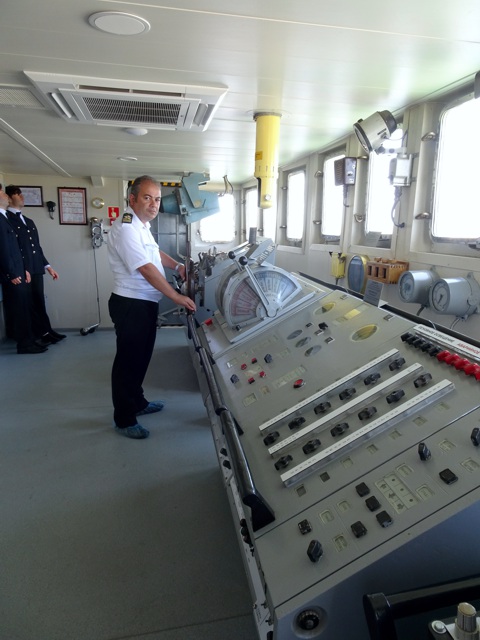

  17. wheel-house;
  18. charthouse;

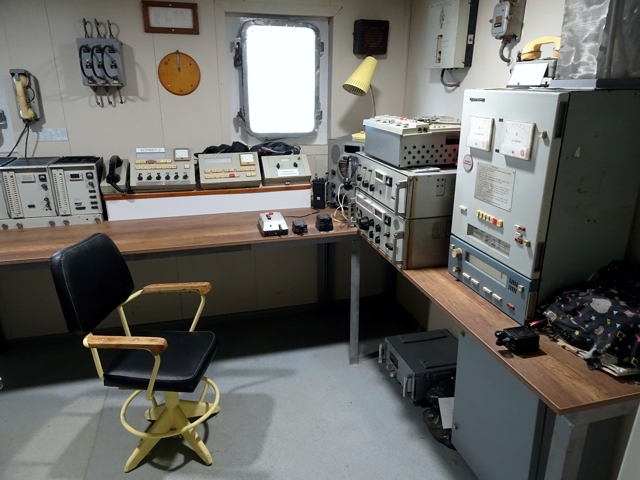

  19. radio-room and radio operator's pantry.

# Name Value
1. Main dimension
Length overall, m 123.50
Length scantlings by RS rules, m 110.48
Breadth scantlings, m 16.0
Depth, m 5.50
L x B x H 123.50 x 16.0 x 5.50 = 10 868
2. Draught on DWL, m 1.85
3. Deadweight at draft d = 1.85 m (about), t 550
4. Maximum allowed number of people on board, pers. 150

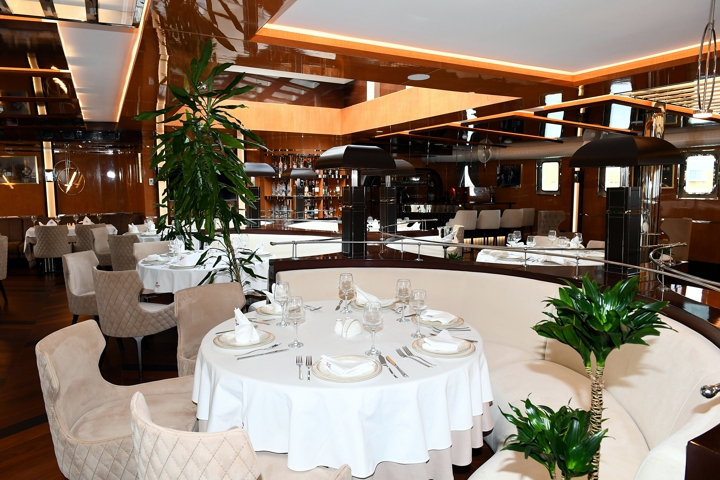

5. Restaurant, area / passenger capacity 167 m³ / 68 pers.
6. Restaurant's cabinet, area / passenger capacity 19.2 m³ / 8 pers.
7. Cafe, area / passenger capacity 250 m³ / 84 pers.
8. RS class K ° Berth-connected ship
9. Power-supply source harbor electric system
3х400V+N, 50Hz
