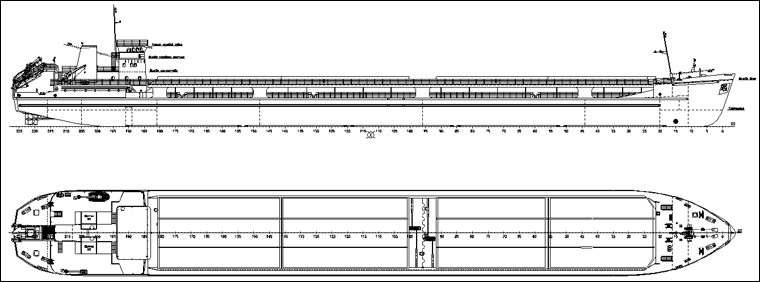

PROJECT 005RSD06

5456 / 4943 DWT multipurpose dry-cargo vessel of "Volgo-Don max" class




Purpose - sea and mixed (river-sea) carrying of general, bulk, timber and large-dimension cargoes, and some dangerous goods.



Laying of the keel Laid down Delivery Years of construction
    1 2003-2005


# Name Value
1. Main dimension
Length overall, m 139.60
Length, m 135.0
Breadth overall, m 16.755
Breadth, m 16.50
Depth, m 5.50
L x B x H 139.60 x 16.755 x 5.50 = 12 864
Air draft from WL at draught d = 3.0 m, m 13.20
2. Draught (at sea / in river), m 3.77 / 3.60
3. Ballast draft, m 3.0
4. Deadweight (at sea / in river), t 5456 / 4943
5. Endurance (at sea / in river), days 15 / 10
6. Range, nautical miles 3600
7. Number of cargo holds 4
8. Cargo holds capacity, m³ 9843
9. Ballast tanks capacity, m³ 3210
10. RRR class M-SP 3.5
11. ME power, kW 2 x 735
12. Auxiliary engines:
diesel-generators, kW 2 x 100
harbor diesel-generator, kW 1 x 50
emergency diesel-generator, kW 1 x 75
13. Crew / berth, pers. 14 / 16
14. Speed, knots 10.2
