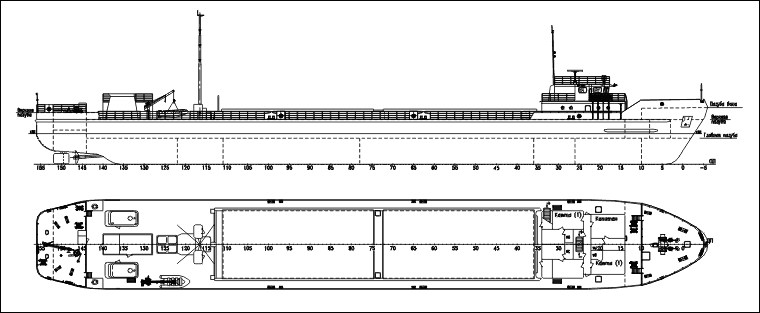

PROJECT 19620 MODERNIZATION

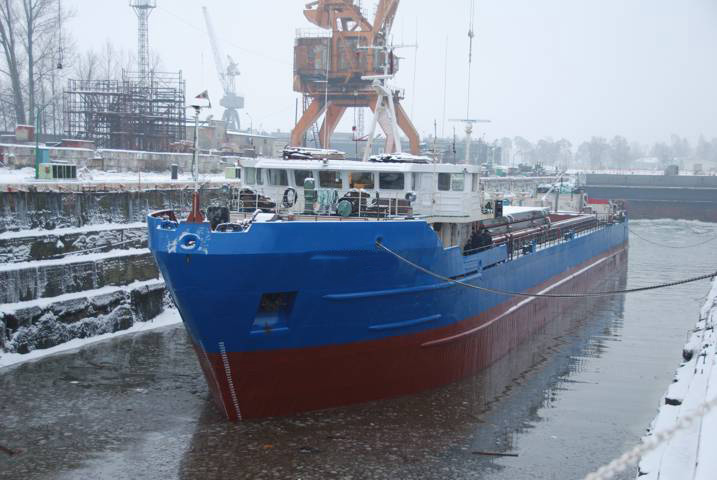

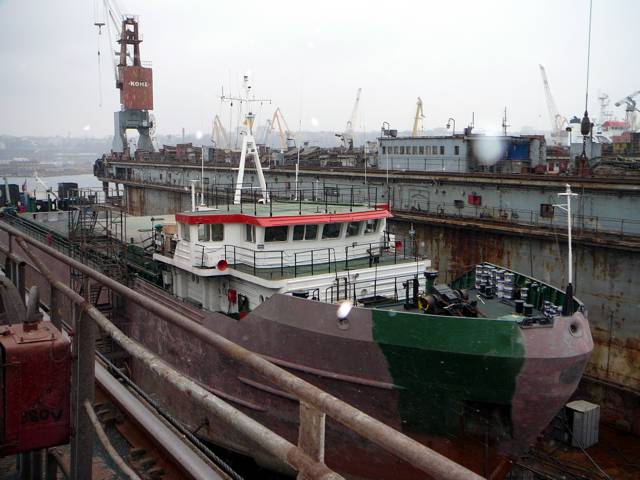

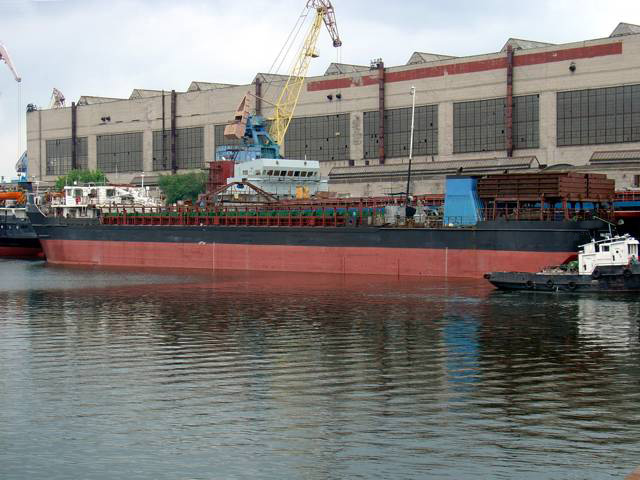

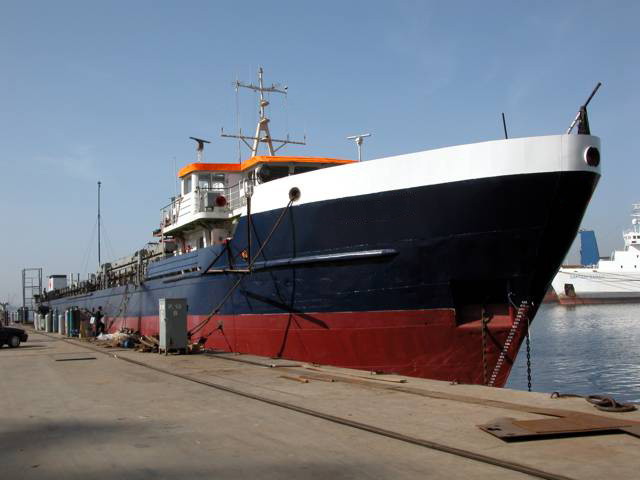

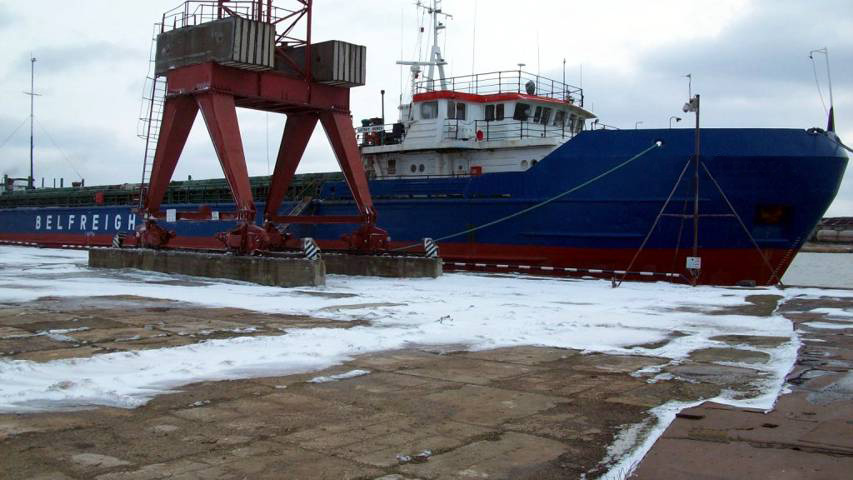

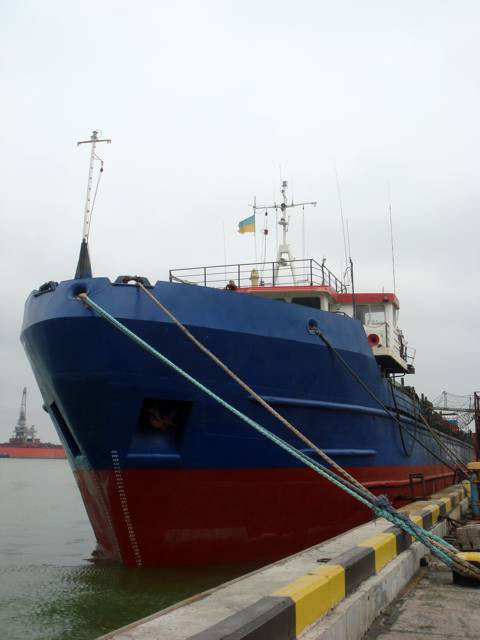

2820 / 2240 DWT dry-cargo vessel




Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including containers of internationall standard, grain, timber.




# Name Value
1. Main dimension
Length overall, m 89.12
Length between PP, m 83.60
Breadth overall, m 12.20
Breadth scantlings, m 12.0
Depth, m 6.0
L x B x H 89.12 x 12.20 x 6.0 = 6 523
2. Draught (at sea / in river), m 4.10 / 3.60
3. Deadweight (at sea / in river), t 2820 / 2240

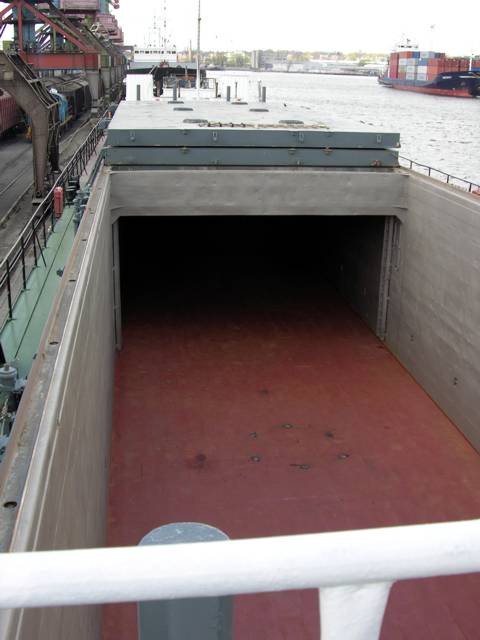

4. Number of cargo holds 1
5. Ballast tanks capacity, m³ 953
6. Stowage factor, m³/t:
at draft d = 4.10 m (at sea) 0.83
at draft d = 3.60 m (in river) 1.05
7. RS class KM L4 IISP (L4 when d ≤ 3.0 m)
8. ME power, kW 2 x 515
9. Rudder and propeller complex 2 FPP + 4 rudders
10. Auxiliary engines:
diesel-generators, kW 3 x 100
emergency diesel-generator, kW 1 x 50
11. Crew, pers. 13
12. Speed, knots 10.0
