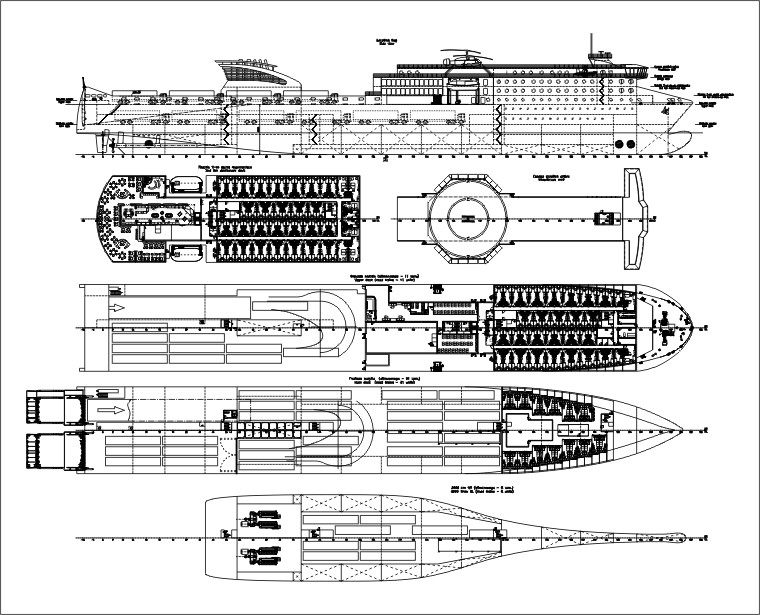

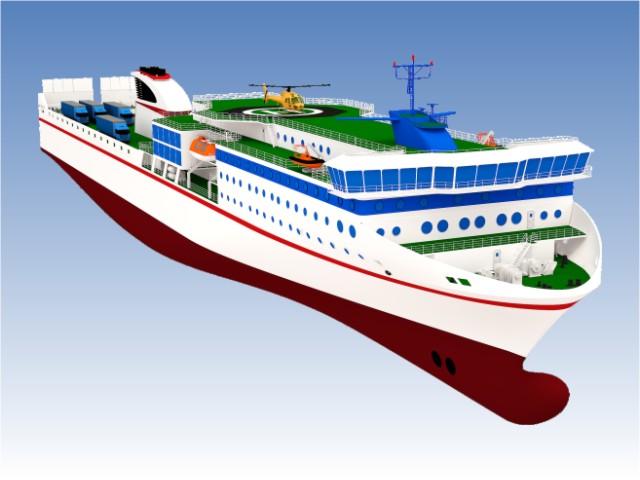

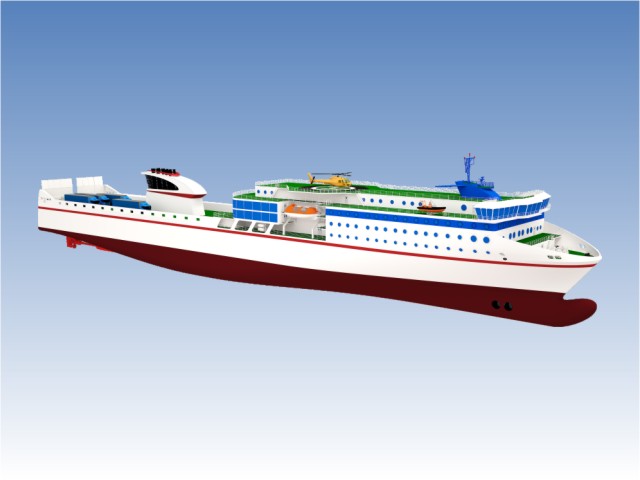

PROJECT CNF16A
Car - passenger ferry
Purpose - transportation of passengers, all kinds of automobiles, including road trains, various wheel techniques and containers on rolltrailers with the stern cargo handling operations, and hazardous cargoes.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 184.50 | |
| Length by SWL, m | 177.10 | |
| Breadth overall (with fenders), m | 26.40 | |
| Breadth, m | 26.0 | |
| Depth to main deck, m | 9.0 | |
| Depth to upper deck, m | 15.0 | |
| L x B x H | 184.5 x 26.40 x 15.0 = 73 062 | |
| 2. | Draught at SWL, m | 6.50 |
| 3. | Deadweight (about), t | 5560 |
| 4. | Range, nautical miles | 2000 |
| 5. | Number of cargo decks | 3 |
| 6. | Lane meters (including folding deck) | 1555 (2243) |
| 7. | Loading capacity for vehicles: | |
| trucks with a semitrailers (road train) length 12-13.5 m, units |
50 | |
| private cars (only), units | 470 | |
| 8. | Cargo lift | 1 x 55 t |
| 9. | Stern cargo ramps L x B, m | 17.4 x 7.2 + 17.4 x 9.7 |
| 10. | Stern passenger ramp (PS) L x B, m | 17.4 x 1.4 |
| 11. | Passenger capacity: | |
| general passenger capacity, pers. | 700 | |
| superior single cabins with lavatory and douche, pers. | 10 | |
| double cabins with lavatory and douche, pers. | 48 | |
| double (converted in four-berth) cabins with lavatory and douche, pers. |
560 | |
| seats in saloon, pers. | 100 | |
| 12. | Restaurant, places | 350 |
| 13. | Passenger recreation rooms: | dayroom with bar with playing machine; dayrooms as a part of passengers halls; internet cafe; smoking room |
| 14. | Additional rooms for passenger service: | luggage store; duty free shop; block of showers and WC; WC for people with disabilities |
| 15. | Sports and fitness complex: | gym; sauna with pool |
| 16. | Passenger lifts, units | 4 |
| 17. | RS class | KM AUT1-ICS OMBO Ro-ro passenger ship |
| 18. | ME power, kW | 4 x 6000 |
| 19. | Rudder and propeller complex | 2 x CPP + 2 semibalanced rudders |
| 20. | Thrusters: | |
| bow, kW | 2 x 1200 | |
| stern, kW | 1 x 1200 | |
| 21. | Auxiliary engines: | |
| diesel-generators, kW | 2 x 1500 | |
| shaft generators, kW | 2 x 4000 | |
| emergency diesel-generator, kW | 1 x 400 | |
| 22. | Motorboats: | |
| lifeboats, pers. | 2 x 150 | |
| speed rescue (StB), pers. | 1 x 15 | |
| rescue (PS), pers. | 1 x 6 | |
| 23. | Evacuation system with inflatable rafts | 6 x 101 pers. |
| 24. | Inflatable life raft throw over (aft) | 1 x 6 pers. |
| 25. | Crew and service personal, pers. | 108 |
| 26. | Full speed (about), knots | 24 |
| 27. | Service speed, knots | 21 |
