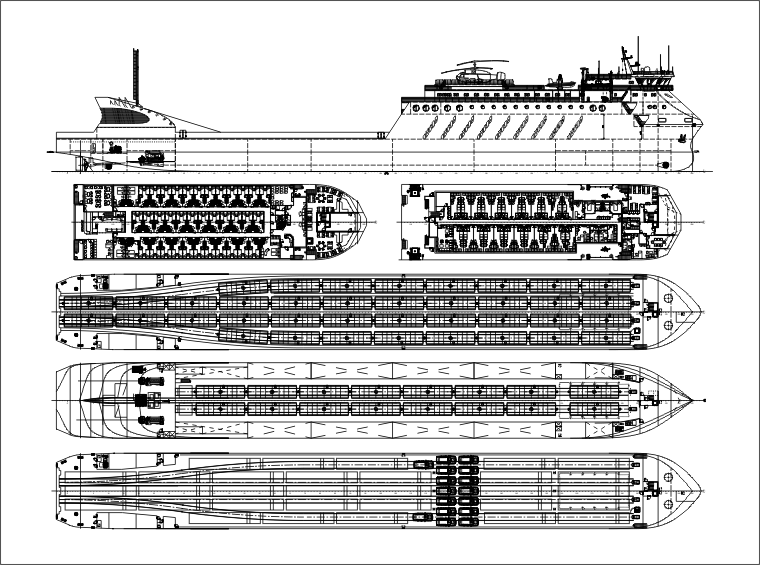

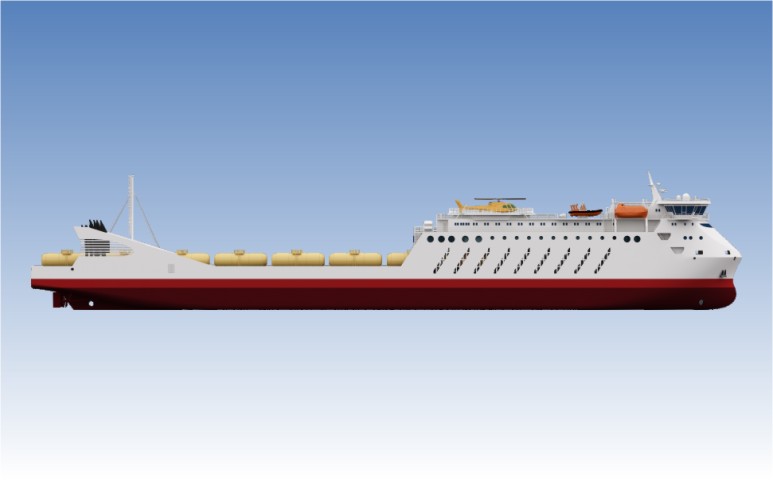

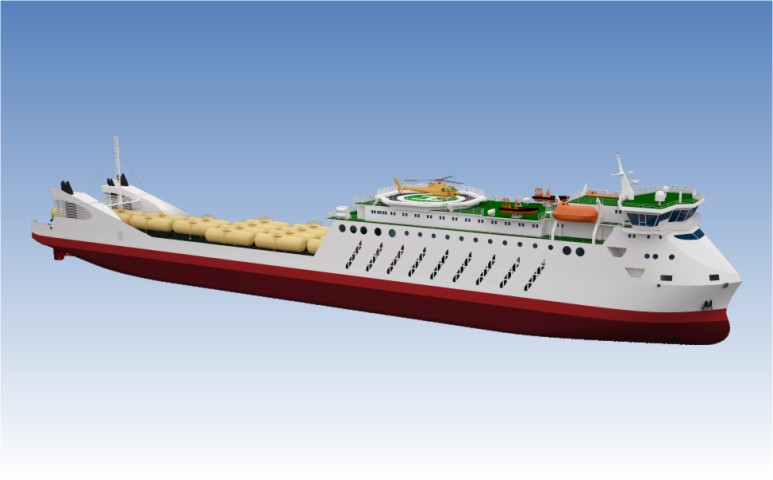

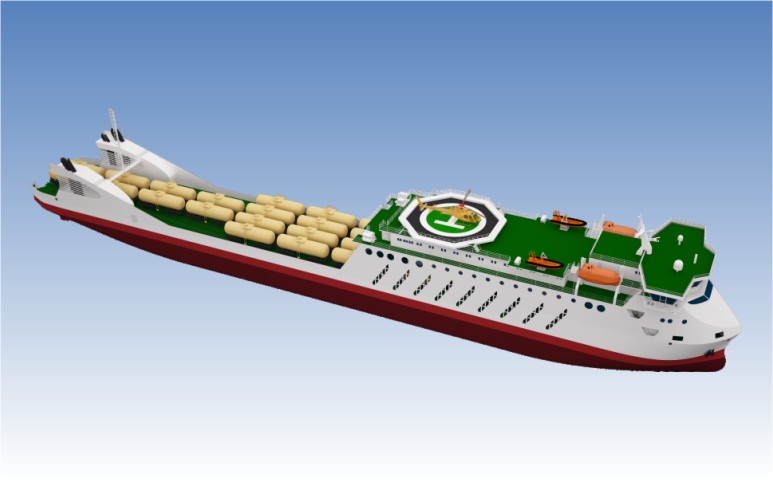

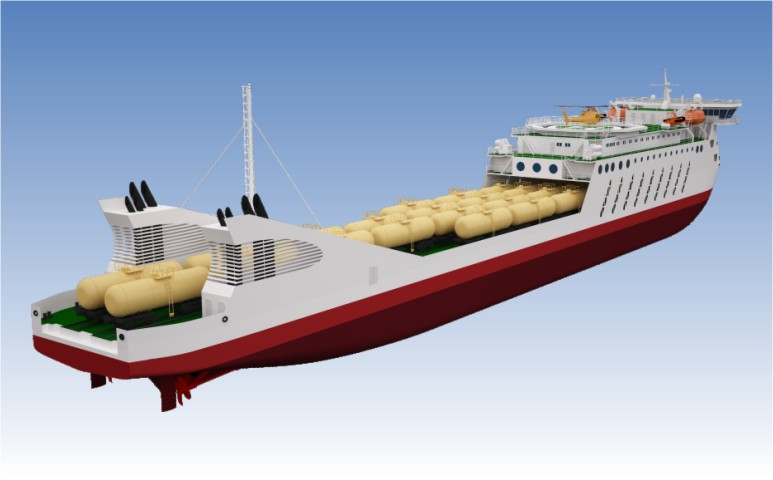

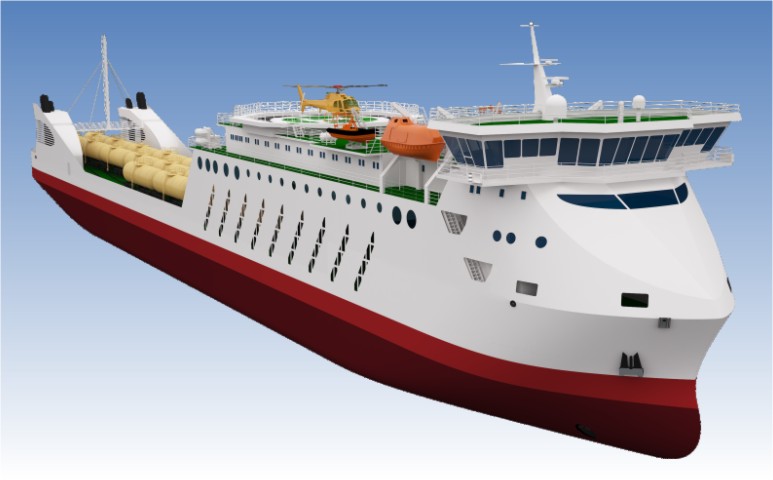

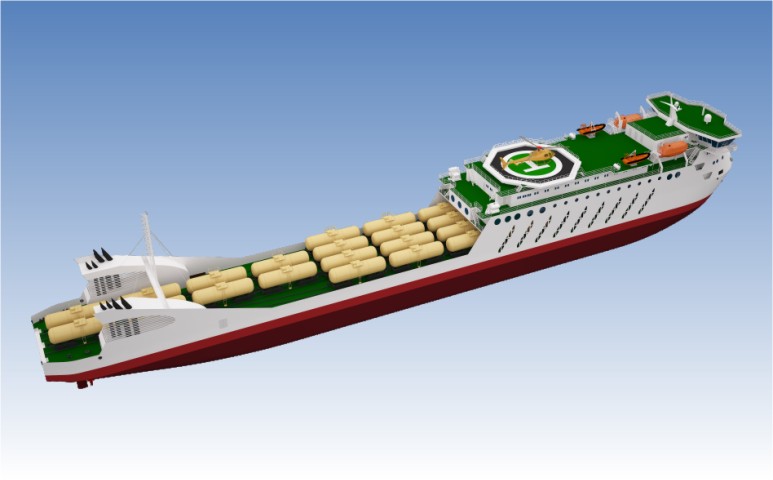

PROJECT CNF18B
Car - Railway train - car - passenger ferry for Caspian Sea
(directions: ports Makhachkala, Olya, Aktau, Turkmenbashi, ports of Iran)
Purpose - transportation of railways trains with gauge of railway 1520 mm, cargo vehicles, tourist-passengers and business-passengers on own private cars, with the stern cargo handling operations. There are places for accommodation and transportation of 150 passengers onboard the vessel.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 150.0 | |
| Length on SWL, m | 147.60 | |
| Breadth overall (with fenders), m | 17.70 | |
| Breadth, m | 17.50 | |
| Depth, m | 7.50 | |
| L x B x H | 150.0 x 17.70 x 7.50 = 19 913 | |
| 2. | Draught at SWL, m | 4.50 |
| 3. | Deadweight at SWL draught (about), t | 5290 |
| 4. | Range, nautical miles | 2500 |
| 5. | Endurace: | |
| by fuel stores, days | 10 | |
| by fresh water and provision stores, days | 5 | |
| by sewage tanks (in areas where any discharge are prohibited), days |
2.5 | |
| 6. | Number of cargo decks | 2 |
| 7. | Length of rails (upper deck / double bottom), m | 460 / 200 |
| 8. | Loading capacity for railway cars: | |
| cisterns of T-1 gauge with length between autoreplacers 12020 mm (four-axled), units |
54 | |
| 9. | Lane meters | 904 |
| 10. | Loading capacity for vehicles: | |
| trucks with a semitrailers (road train) length 12-13.5 m, units | 50 | |
| private cars, units | 16 | |
| 11. | Cargo lift | 1 x 188 t |
| 12. | Passenger capacity: | |
| general passenger capacity, pers. | 150 | |
| superior double cabins with lavatory and douche (including 1 cabin for people with disabilities), pers. |
10 | |
| double (converted in four-berth) cabins with lavatory and douche, pers. |
92 | |
| double (converted in four-berth) inner cabins with lavatory and douche, pers. |
48 | |
| 13. | Restaurant, places | 76 |
| 14. | Passenger recreation rooms: | internet cafe; bar with playing machine; smoking room |
| 15. | Additional rooms for passenger service: | duty free shop; block of showers and WC (including 1 for people with disabilities) |
| 16. | Sports and fitness complex: | gym; sauna; pool |
| 17. | Medical block: | doctor's consulting room; hospital (1 berth); isolation ward (1 berth) |
| 18. | Passenger lift | 1 x 3 pers. |
| 19. | RS class | KM Ice2 R1 AUT1-ICS OMBOECO HELIDECK Ro-ro passenger ship |
| 20. | ME power, kW | 4 x 2600 |
| 21. | Rudder and propeller complex | 2 x FPP + 2 suspended rudders |
| 22. | Thrusters: | |
| bow, kW | 1 x 350 | |
| stern, kW | 1 x 350 | |
| 23. | Auxiliary engines: | |
| diesel-generators, kW | 4 x 300 | |
| emergency diesel-generator, kW | 1 x 300 | |
| 24. | Motorboats: | |
| lifeboats, pers. | 2 x 42 | |
| speed rescue (StB), pers. | 1 x 15 | |
| rescue (PS), pers. | 1 x 6 | |
| 25. | Evacuation system with inflatable rafts | 2 x (101 + 51) pers. |
| 26. | Crew and service personal, pers. | 45 |
| 27. | Ship speed in deep still water for the clean and recently painted hull at 4.0 m draught and 85% power of ME, knots |
14 |
