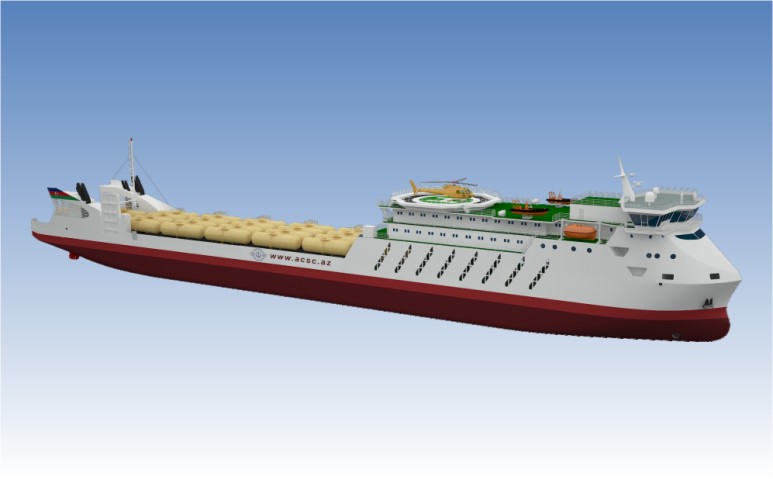

Purpose - transportation of railways trains with gauge of railway 1520 mm, including dangerous cargoes, cargo vehicles, passengers in number of 2 persons for each road train, with the stern cargo handling operations. The vessel intended for transportation of dangerous goods on the open upper deck. There are places for accommodation and transportation of 100 passengers onboard the vessel.

Nominations:
RINA - Royal Institution of Naval Architects

Baird Maritime

#	Name	Value
1.	Main dimension
	Length overall, m	154.50
	Length between PP, m	147.0
	Breadth overall (with fenders), m	17.70
	Breadth, m	17.50
	Depth, m	7.50
	L x B x H	154.50 x 17.70 x 7.50 = 20 510
2.	Draught on DWL (design), m	4.50
3.	Deadweight at DWL draught (about), t	5540
4.	Endurace:
	by fuel stores, days	10
	by fresh water and provision stores, days	5
	by sewage tanks (in areas where any discharge are prohibited), days	3
5.	Range (about), nautical miles	2500
6.	Number of cargo decks	2

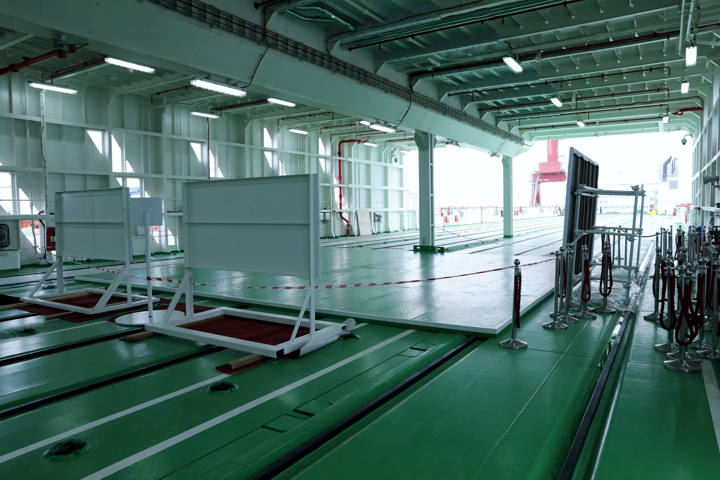

7.	Length of rails (upper deck / double bottom), m	480 / 208
8.	Loading capacity for railway cars:
	railcars of T-1 gauge with length between autoreplacers 12020 mm (four-axled), units	56
	railcars of T-1 gauge with length between autoreplacers 13920 mm (four-axled), units	46
	railcars of T-1 gauge with length between autoreplacers 14730 mm (four-axled), units	44
9.	Lane meters	900
10.	Loading capacity for vehicles:
	trucks with a semitrailers (road train) length 12-13.5 m, units	50
11.	Cargo lift	1 x 188 t
12.	Passenger capacity:
	general passenger capacity, pers.	100
	superior double cabins with lavatory and douche (including 1 cabin for people with disabilities)	4
	double (converted in four-berth) cabins with lavatory and douche	96
13.	Restaurant, places	50
14.	Passenger recreation rooms:	internet cafe; bar with playing machine; smoking room
15.	Additional rooms for passenger service:	duty free shop; block of showers and WC (including 1 for people with disabilities)
16.	Sports and fitness complex:	gym; sauna; pool
17.	Medical block:	doctor's consulting room; hospital (1 berth); isolation ward (1 berth)
18.	Passenger lift	1 x 3 pers.
19.	RS class	KM R2 AUT1-ICS OMBO ECO HELIDECK Ro-ro passenger ship
20.	ME power, kW	2 x 2600
21.	Rudder and propeller complex	2 x FPP + 2 suspended rudders
22.	Thrusters:
	bow, kW	1 x 350
	stern, kW	1 x 350
23.	Auxiliary engines:
	diesel-generators, kW	4 x 300
	emergency diesel-generator, kW	1 x 300
24.	Motorboats:
	lifeboats, pers.	2 x 22
	speed rescue (StB), pers.	1 x 15
	rescue (PS), pers.	1 x 6
25.	Evacuation system with inflatable rafts	2 x 106 pers.
26.	Crew and service personal, pers.	30
27.	Ship speed in deep still water for the clean and recently painted hull at 4.0 m draught and 85% power of ME, knots	14
