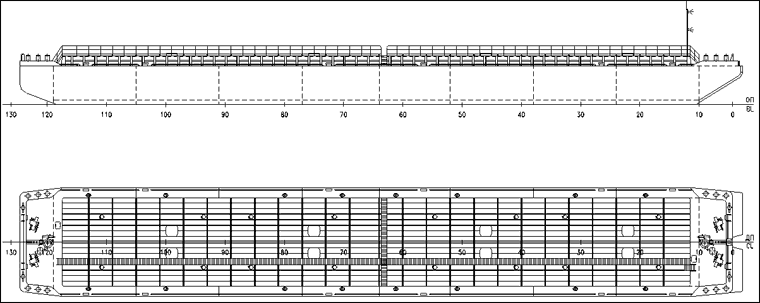

PROJECT 1635TM
2059 t cargo capacity non-self-propelled river oil tankere
Purpose - carrying of petroleum products in bulk with the flash-point greater than 60°C. Navigation area - inland waterways category "O".
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 73.20 | |
| Length scantlings, m | 72.20 | |
| Breadth, m | 11.0 | |
| Depth, m | 3.90 | |
| 2. | Draught in river, m | 3.24 |
| 3. | Light draught (mean), m | 0.61 |
| 4. | Air draft from BL to an upper edge of non-removable parts (not greater than), m |
5.30 |
| 5. | Cargo carrying capacity (about), t | 2059 |
| 6. | Number of cargo tanks | 8 |
| 7. | Cargo tanks capacity, m³ | 2581 |
| 8. | RRR class | O (ice) non-self-propelled tanker |
O (ice) non-self-propelled tanker
