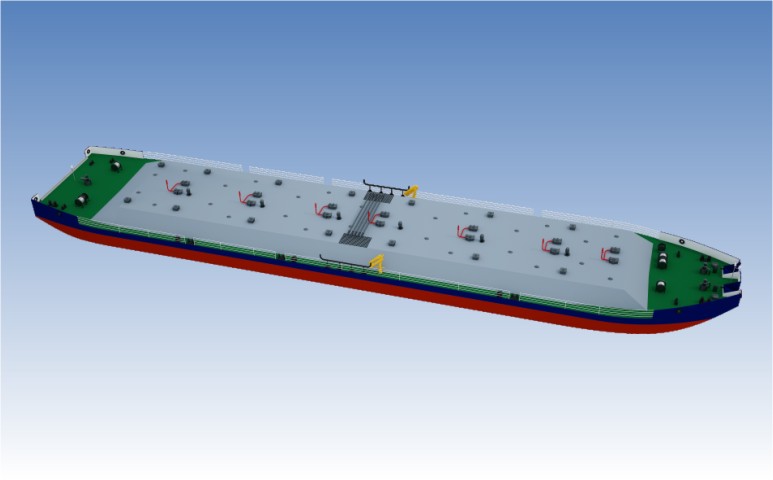

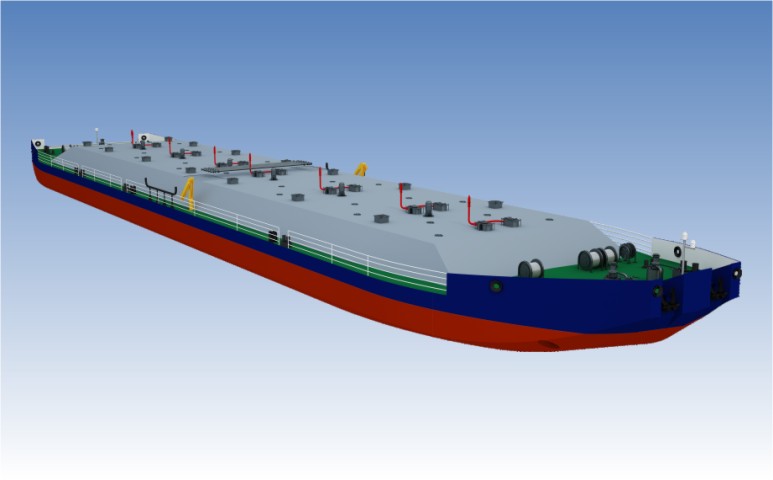

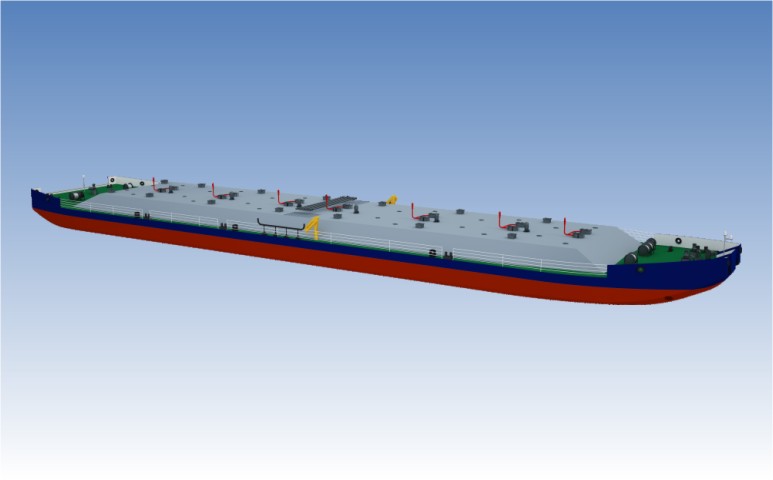

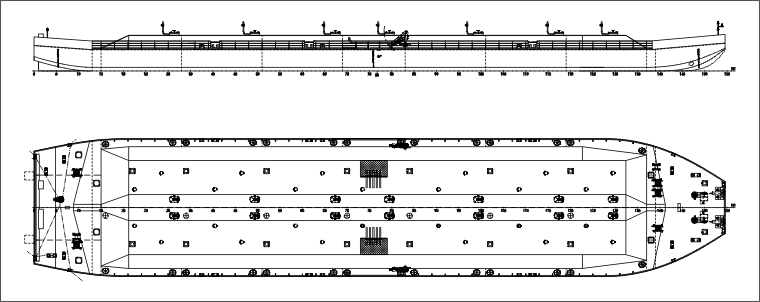

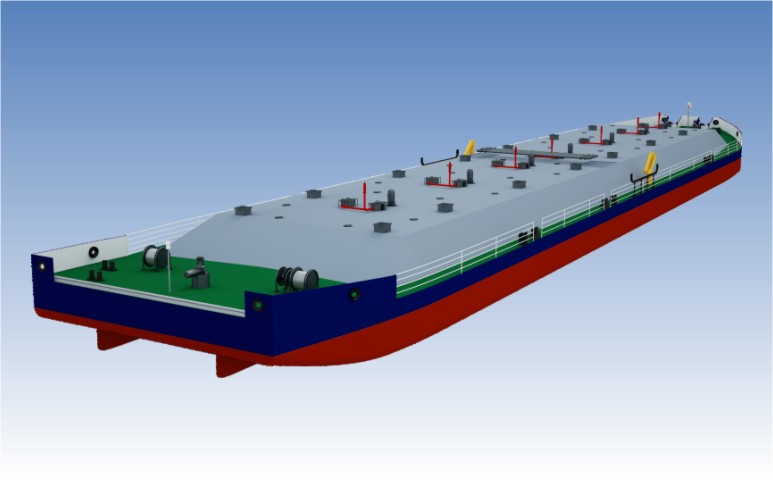

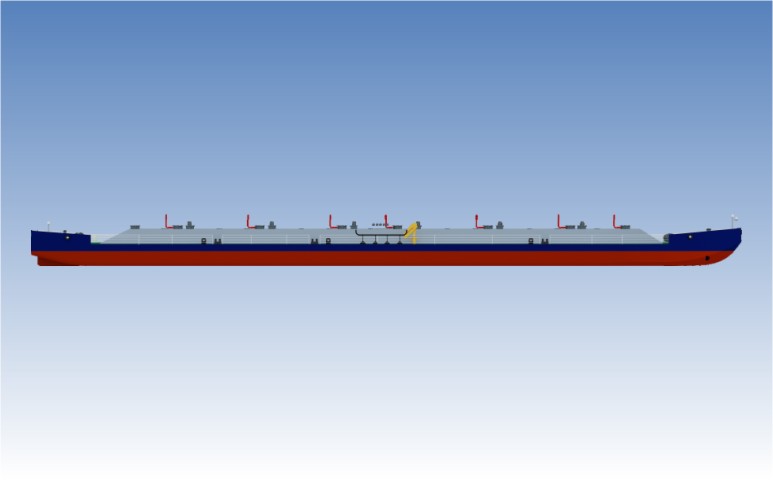

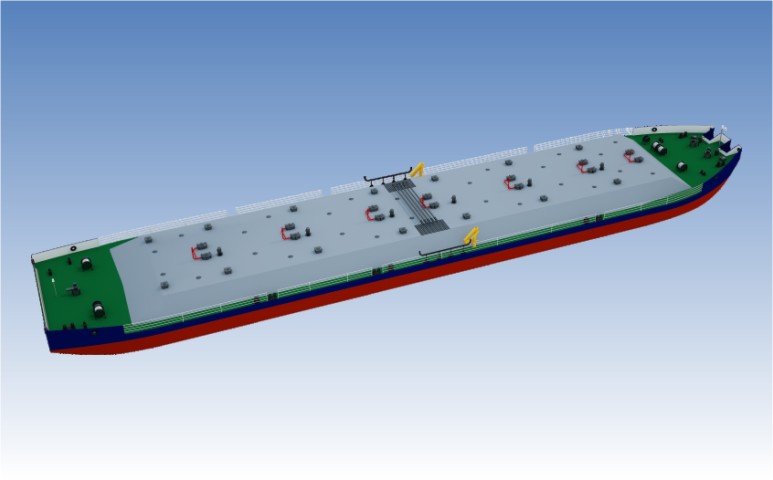

PROJECT ROB21

Small draught non-self-propelled river oil tanker




Purpose - river-sea carrying up 3 sorts of the oil-liquid cargoes without restriction on the flare temperature.




# Name Value
1. Main dimensions
Length overall by hull, m 85.0
Length by DWL, m 84.40
Breadth by hull, m 17.20
Breadth by DWL, m 17.0
Depth, m 2.60
L x B x H 85.0 x 17.20 x 2.60 = 3 801
2. Draught on DWL, m 1.80
3. Deadweight in river at draught d = 1.40 /
1.60 / 1.80 / 2.0 / 2.15 / 2.35 m (about), t
1235 / 1526 / 1801 / 2075 / 2280 / 2555
4. Number of cargo tanks 14
5. Cargo tanks capacity (when filling 98%), m³ 3257
6. Cargo pumps, m³/h 7 x 100
7. RRR class R 1.2 (ice 20)
8. Bow thruster, kW 55
9. GT 1799
