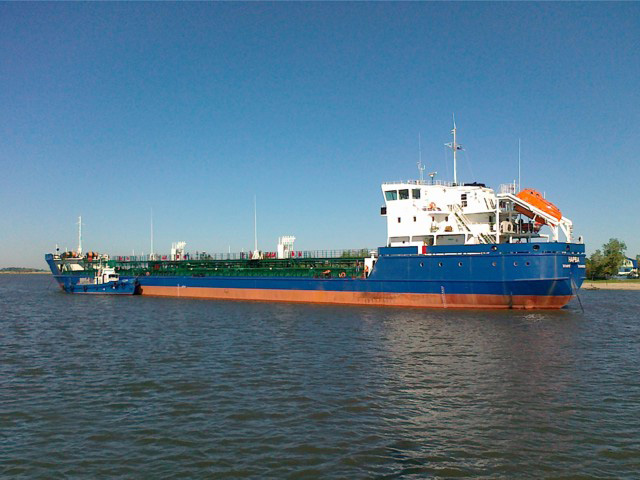

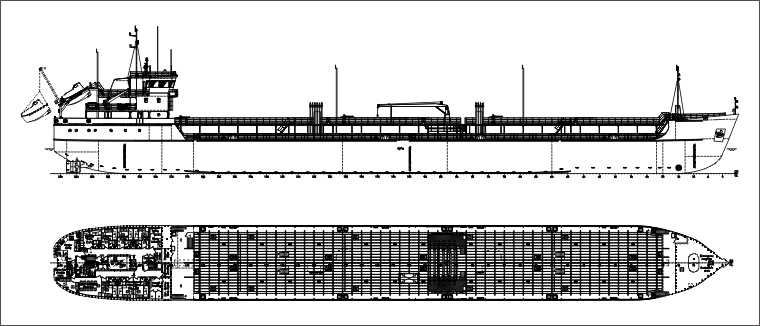

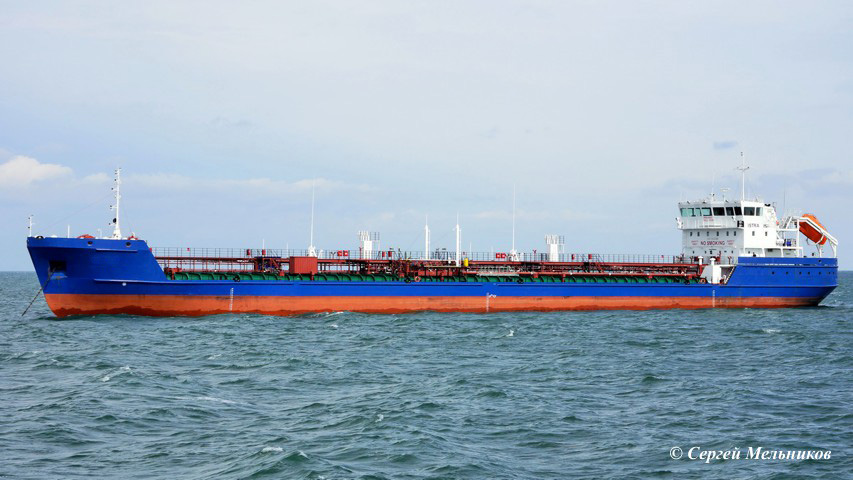

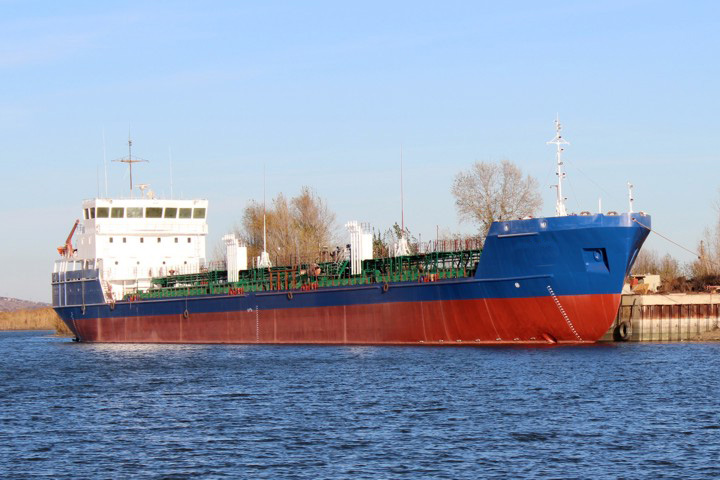

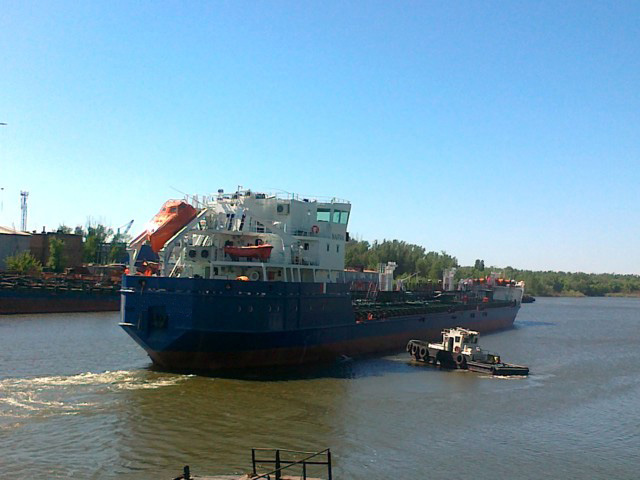

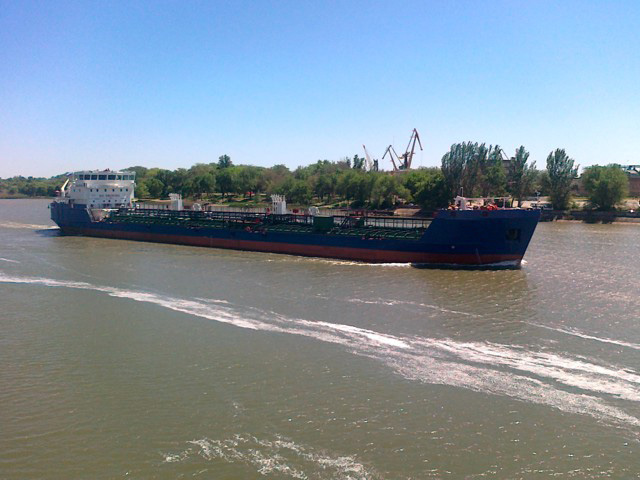

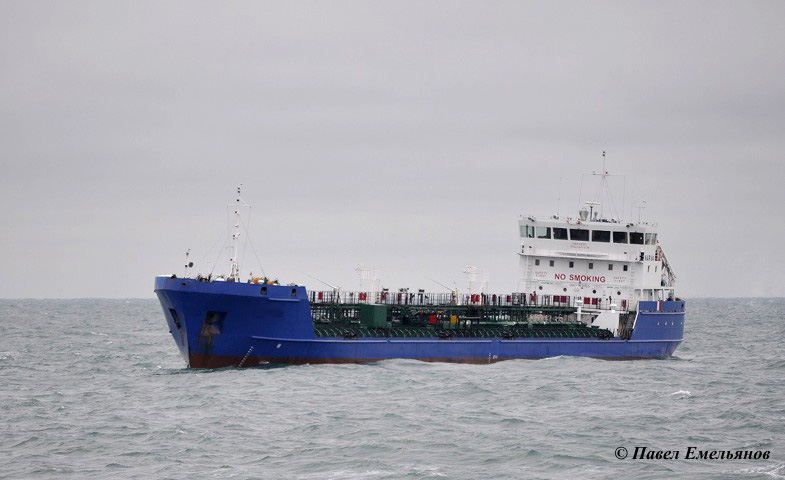

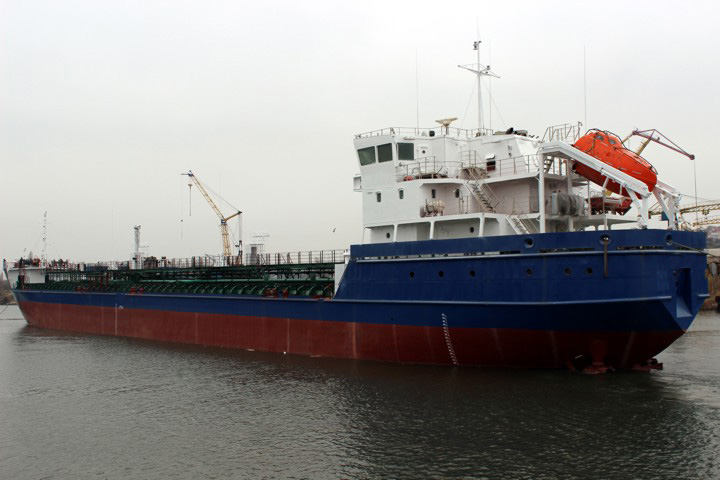

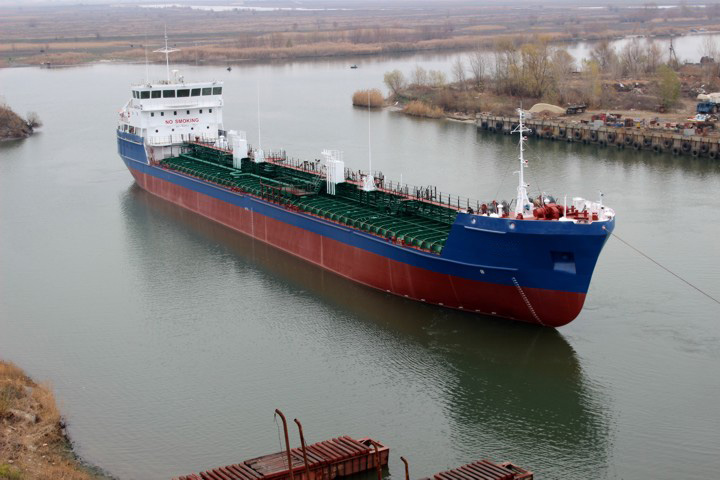

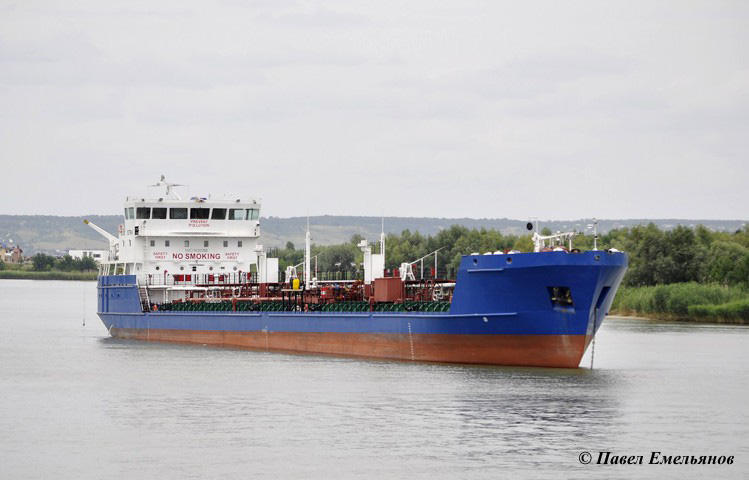

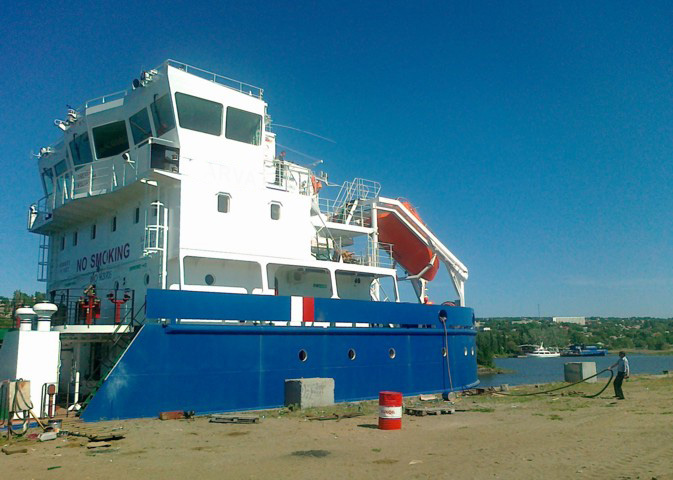

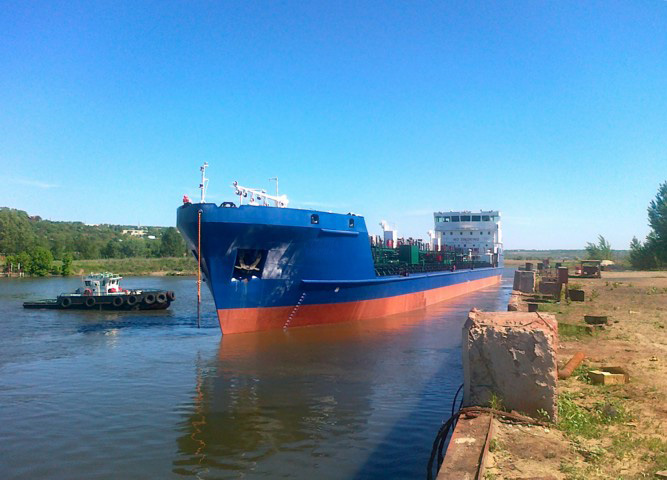

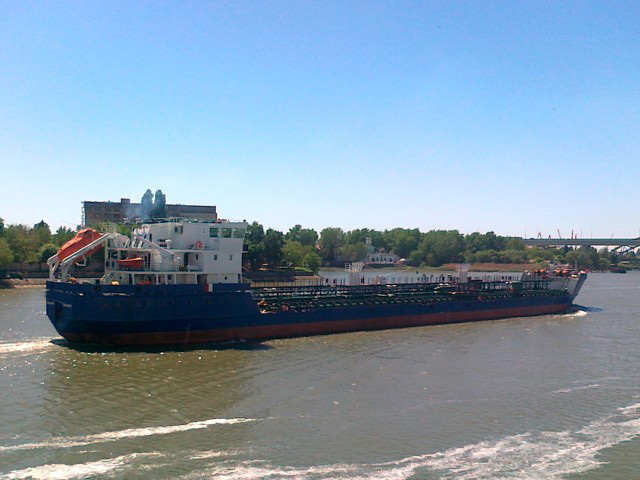

PROJECT RST05
3955 DWT product - tanker
Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products without restrictions for flash-point.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 118.87 | |
| Length between PP, m | 115.26 | |
| Breadth overall, m | 13.24 | |
| Breadth scantlings, m | 13.0 | |
| Depth, m | 5.80 | |
| Air draft from BL to an upper edge of non-removable parts, m |
17.20 | |
| L x B x H | 118.87 x 13.24 x 5.80 = 9 129 | |
| 2. | Draught (at sea (at SWL) / in river), m | 4.3 / 3.6 |
| 3. | Deadweight (at sea / in river), t | 3955 / 2868 |
| 4. | Endurance, days | 12 |
| 5. | Number of tanks (cargo / slop) | 10 (8 / 2) |
| 6. | Cargo tanks capacity (including slop tanks), m³ | 4427 |
| 7. | Cargo pumps, m³/h | 2 x 450 |
| 8. | Ballast tanks capacity, m³ | 1950 |
| 9. | Polski Rejestr Statków class | KM CRUDE OIL TANKER ESP II E |
| 10. | ME power, kW | 2 x 567 |
| 11. | Bow thruster, kW | 75 |
| 12. | Auxiliary engines: | |
| diesel-generators, kW | 3 x 100 | |
| emergency diesel-generator, kW | 1 x 50 | |
| 13. | Thermal boilers, t/h | 2 x 1.0 |
| 14. | Crew / berth, pers. | 14 / 16 |
| 15. | Speed (about), knots | 10.0 |
