PROJECTS RST09 and RST09.01

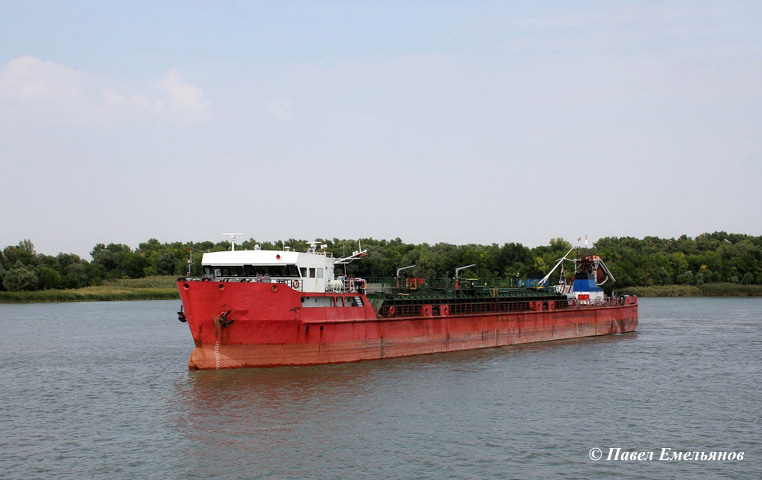

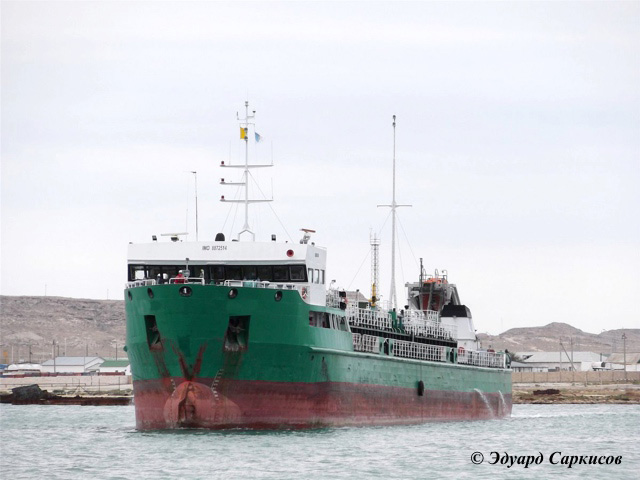

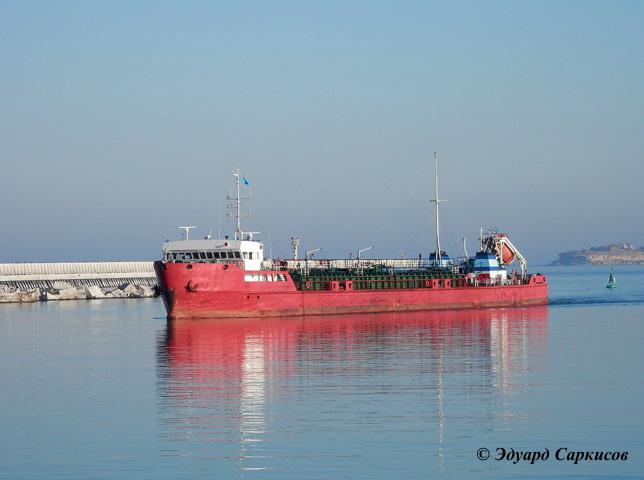

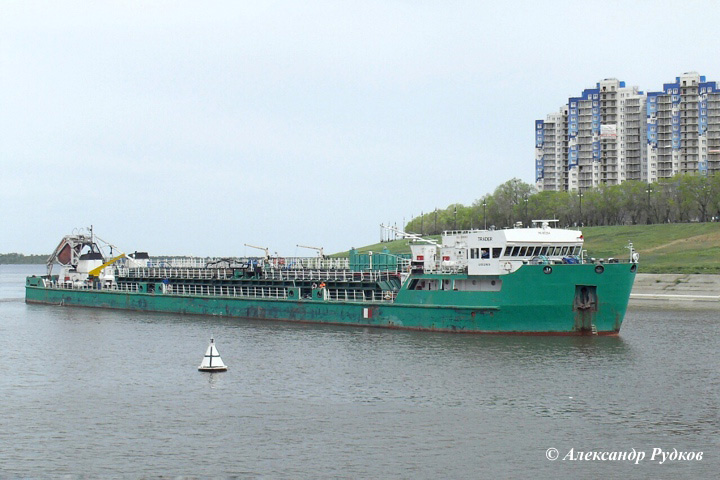

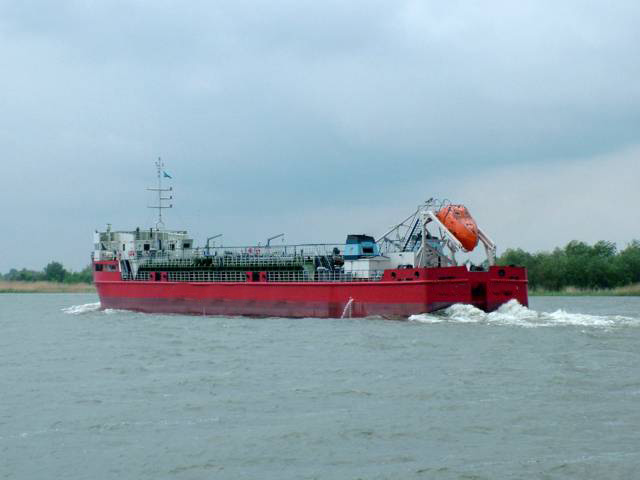

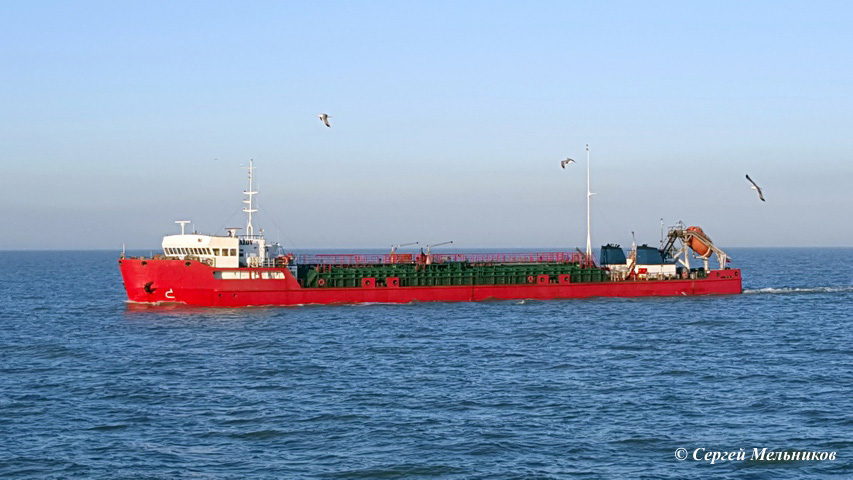

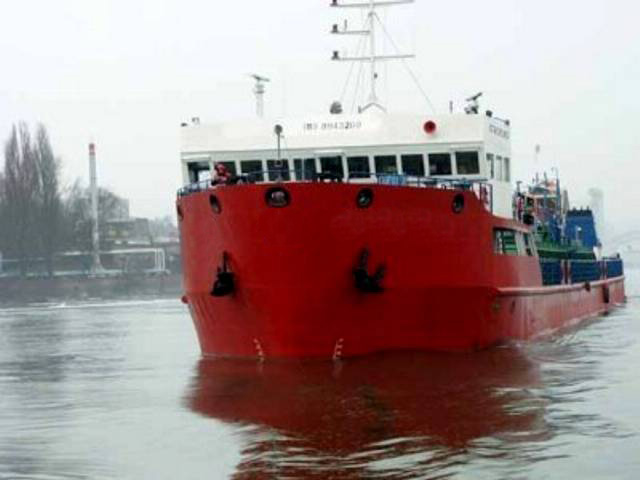

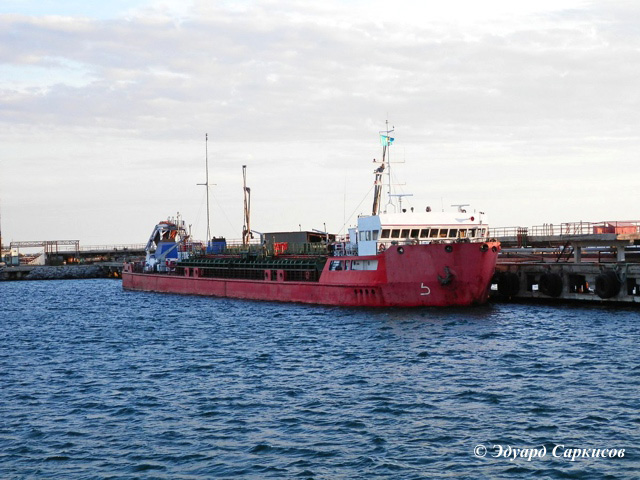

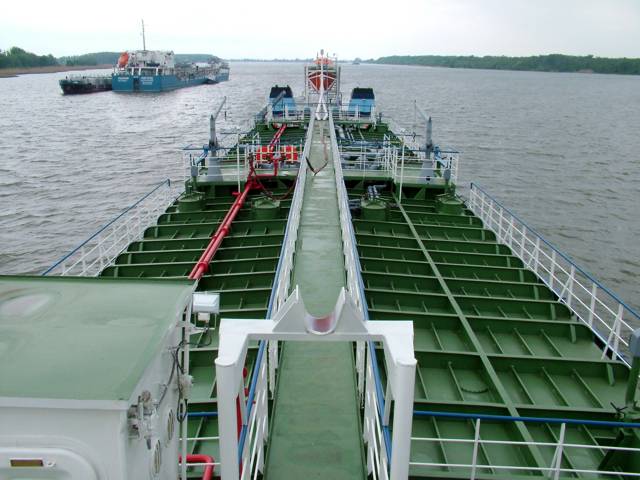

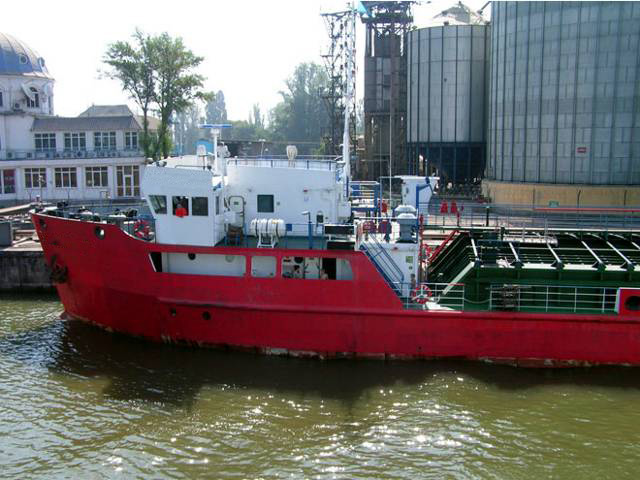

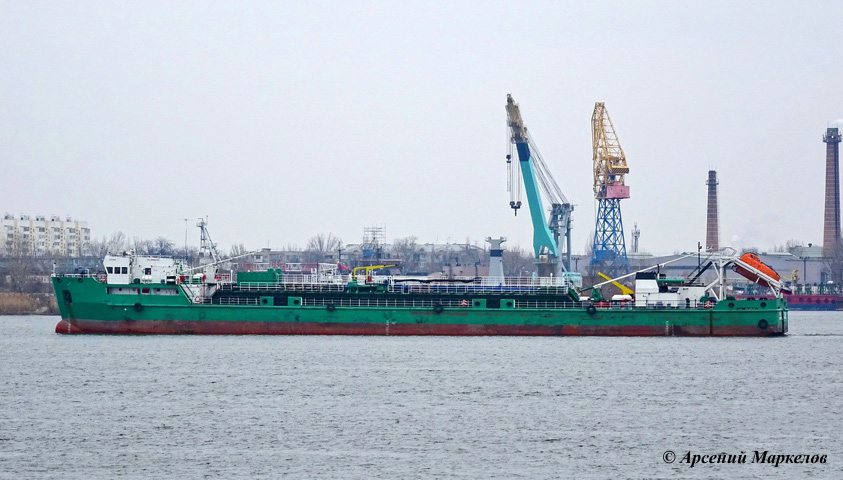

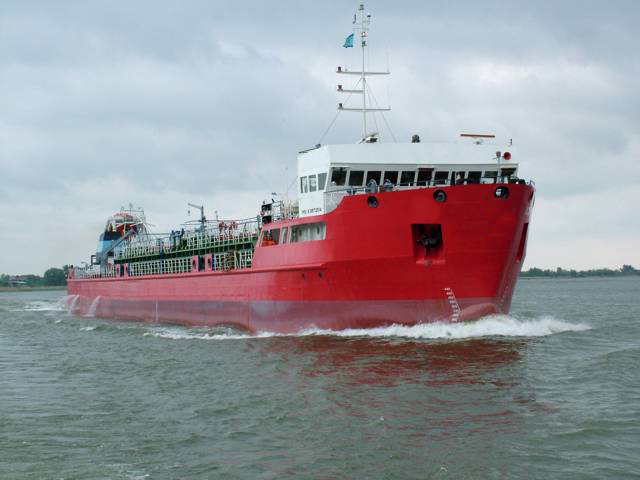

2708 DWT chemical - product tanker IMO2 (vegetable oil)

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 7 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14

Purpose - sea and mixed (river-sea) carrying of vegetable oil and light petroleum products with flash-point >60°C.


# Name Value
1. Main dimension
Length overall, m 89.67
Length, m 81.40
Breadth overall, m 12.20
Breadth, m 12.0
Depth, m 5.80
Depth of trunk, m 1.60
L x B x H 89.67 x 12.20 x 5.80 = 6 345
Air draft from WL at draught d = 2.0 m, m 12.50
2. Draught (at sea / in river), m 4.0 / 3.60
3. Ballast draft, m 2.15
4. Deadweight (at sea / in river), t 2708 / 2216
5. Endurance, days 10
6. Range, nautical miles 1100
7. Cargo carrying capacity (at sea / in river), t 2605 / 2113
8. Number of cargo tanks 6
9. Cargo tanks capacity, m³ 2585
10. Number of manifolds / sorts of cargo 1 manifold / 1 sort
11. Cargo pumps, m³/h 2 x 150
12. Cargo heating coils
13. Tank wash system
and cleaning of washing liquid		 slop tank's pump output 150 m³/h
14. Ballast tanks capacity, m³ 780
15. RS class KM LU1 IISP oil carrier (>60°C) (ESP)
16. ME power, kW 2 x 460
17. Auxiliary engines:
diesel-generators, kW 3 x 100
emergency diesel-generator, kW 1 x 50
18. Boilers:
thermal, t/h 2 x 0.4
exhaust gas, t/h 2 x 0.22
19. Crew, pers. 10
20. Speed, knots 10
