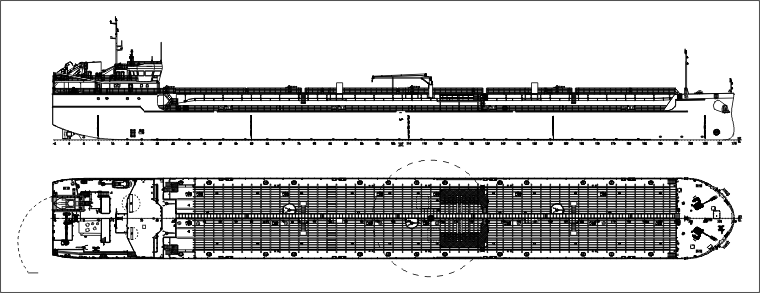

PROJECT RST27M
7902/5363 DWT chemical - product tanker IMO2
Purpose - sea and mixed (river-sea) carrying of crude oil and petroleum products with density from 0.7 up to 1.015 t/m³, and also harmful liquid substances in bulk, including liquids requiring heating up to temperature 60°C, without restriction of temperature of flash-point. Simultaneous carriage of 3 sorts of cargo is provided.
Nominations:
|
 |
RINA - Royal Institution of Naval Architects |
| Laying of the keel |
Laid down |
Delivery |
Years of construction |
| |
|
5 |
2017-2018 |
| # |
Name |
Value |
| 1. |
Main dimensions |
| Length overall, m |
140.85 |
| Length between PP, m |
137.10 |
| Breadth scantlings, m |
16.70 |
| Depth, m |
6.0 |
| L x B x H |
140.85 x 16.70 x 6.0 = 14 113 |
| 2. |
Draught (at sea / in river), m |
4.60 / 3.60 |
| 3. |
Deadweight (at sea / river), t |
7902 / 5363 |
| 4. |
Endurance (at sea / river), days |
20 / 12 |
| 5. |
Number of tanks (cargo / slop) |
8 (6 / 2) |
| 6. |
Cargo tanks capacity
(including slop tanks), m³ |
8970 |
| 7. |
Number of manifolds / sorts of cargo |
2 manifolds at the middle +
1 manifolds at the aft StB / 3 sorts |
| 8. |
Cargo pumps, m³/h |
6 x 200 |
| 9. |
Cargo heating |
coils |
| 10. |
Tank wash system
and cleaning of washing liquid |
slop tank's pump output 80 m³/h |
| 11. |
RS class |
KM  Ice1  R2 AUT1-ICS OMBO
VCS ECO-S Oil tanker/Chemical tanker type 2 (ESP) |
| 12. |
ME power, kW |
2 x 1200 |
| 13. |
Rudder and propeller complex |
2 x Rudderpropellers |
| 14. |
Bow thruster, kW |
230 |
| 15. |
Auxiliary engines: |
| diesel-generators, kW |
3 x 292 |
| emergency diesel-generator, kW |
1 x 136 |
| 16. |
Thermal boilers, t/h |
2 x 2.5 |
| 17. |
Crew / berth, pers. |
12 / 14 + pilot |
| 18. |
Speed (at draft d = 4.50 m and 100% MCR)
(not less then), knots |
10.0 |
|
