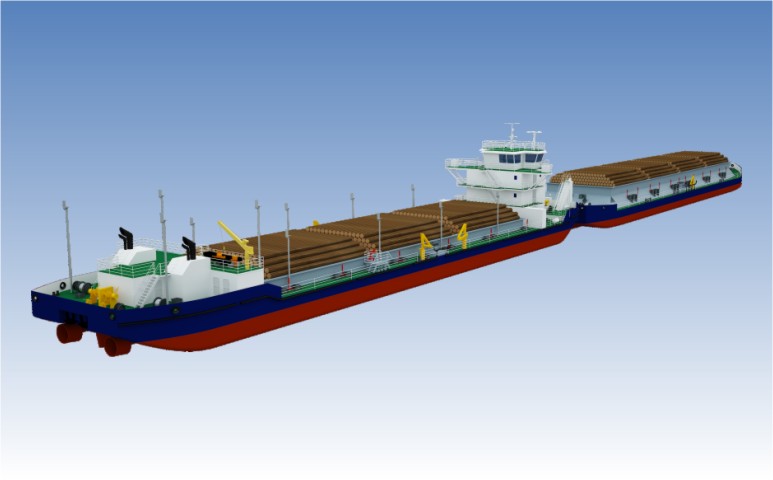

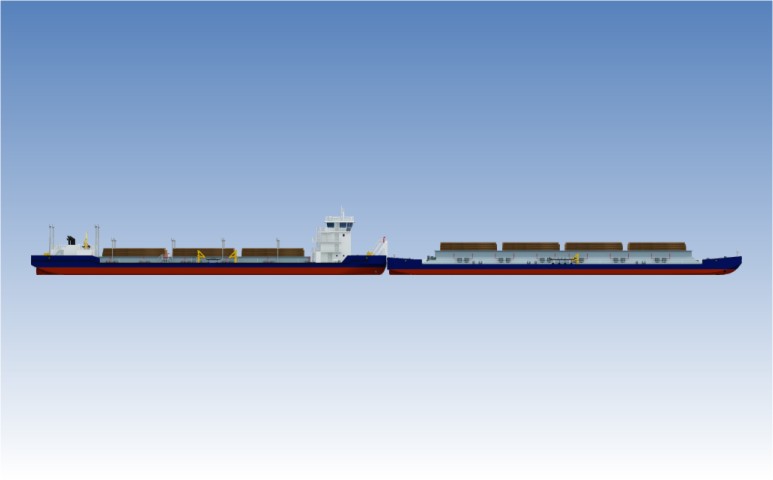

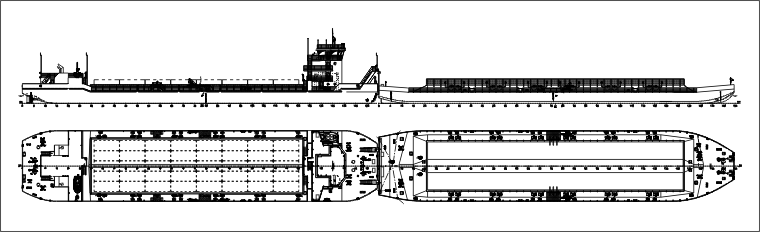

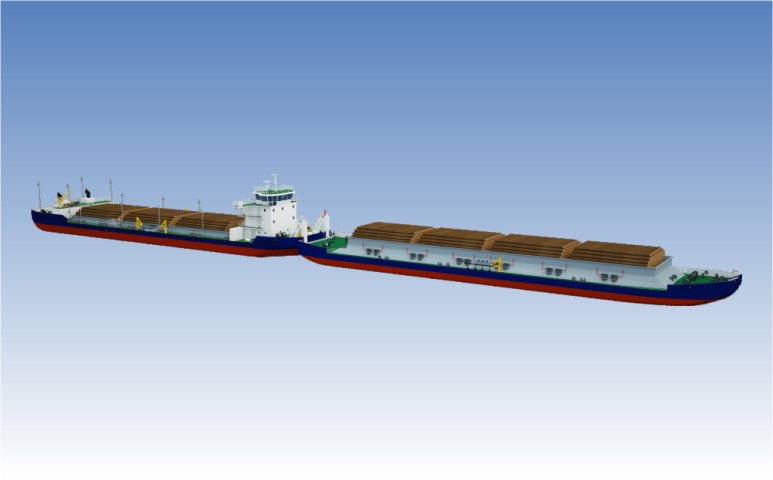

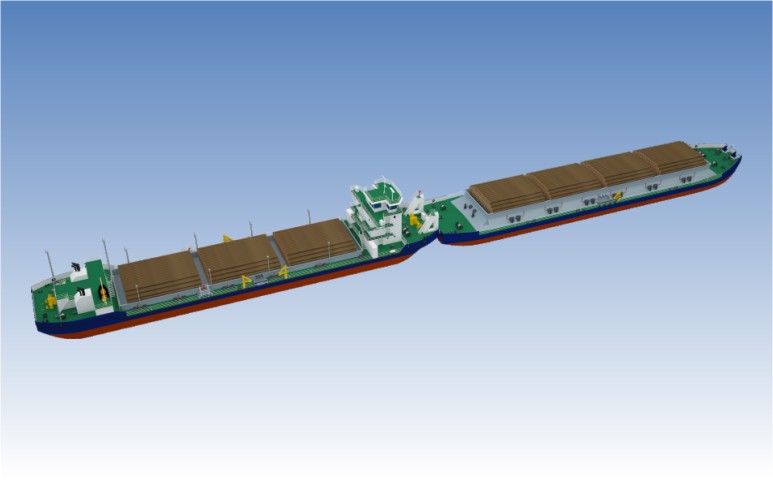

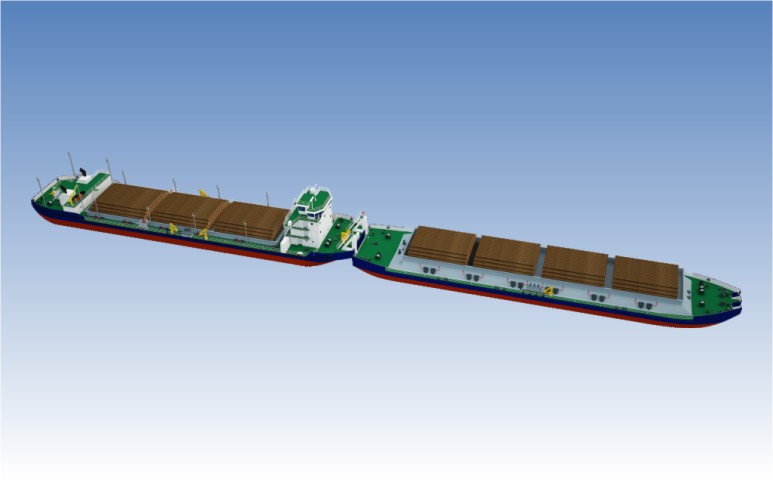

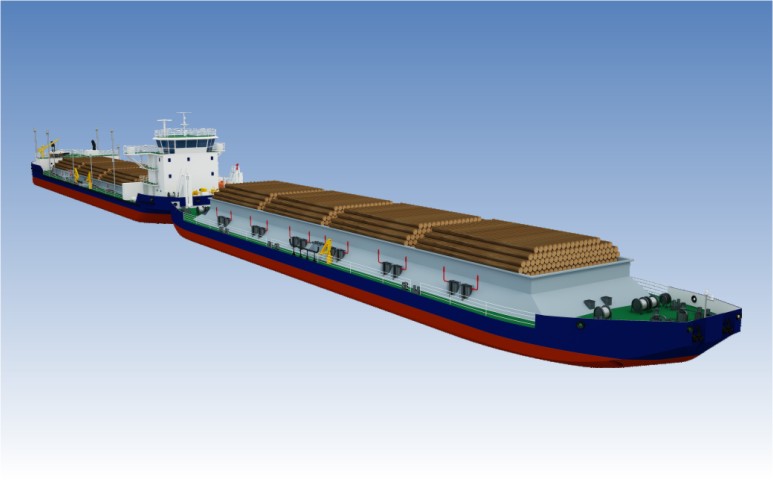

TUG-BARGE TRAIN CONSISTING OF RT63A AND ROB21A PROJECTS

Shallow-draft combination (dry-cargo / oil tanker) integrated vessel for East Basin Rivers


Purpose - carriage of oil cargoes with flash-point greater than 60°C and general & bulk cargoes, which can be wet, including TEU and FEU containers of international standard (without fitting), steel and steel products, logs and lumber, coil, building materials, large-dimension and heavy-weight cargoes.


Characteristics of vessels see RT63A and ROB21A

# Name Value
1. Main dimensions
Length overall, m 170.40
Breadth overall, m 17.20
Breadth on DWL, m 17.0
2. Draught on DWL, m 1.80
3. Deadweight in river at draught
d = 1.40 / 1.60 / 1.80 / 2.0 / 2.15 / 2.35 m (about), t
1900 / 2441 / 2985 / 3529 / 3942 / 4493
4. Cargo tanks capacity, m³ 4831
5. Cargo bunkers capacity (to level of upper plate coaming), m³ 1996
6. RRR class of tanker-pusher O 2.0 (ice 20) A
7. RRR class of barge R 1.2 (ice 20)
8. ME power, kW 2 x 746
9. Crew / berth, pers. 8 / 10
