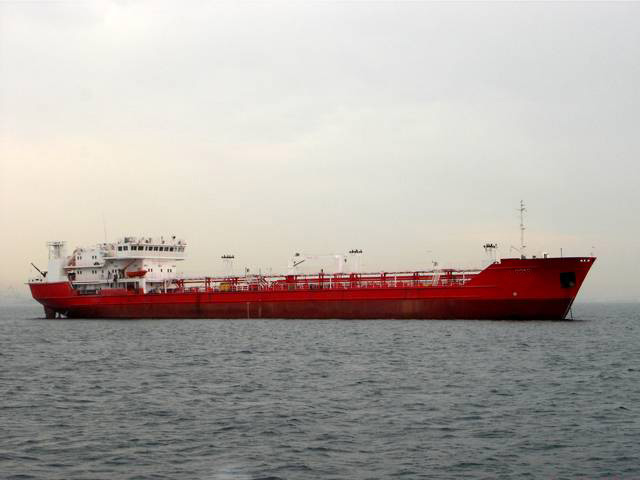

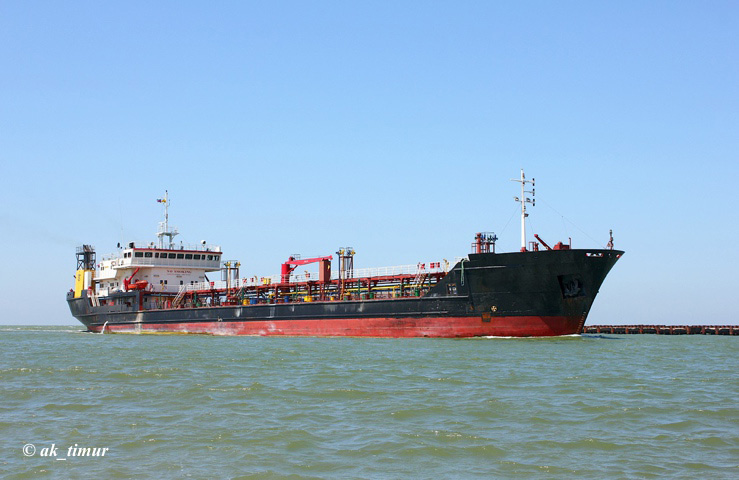

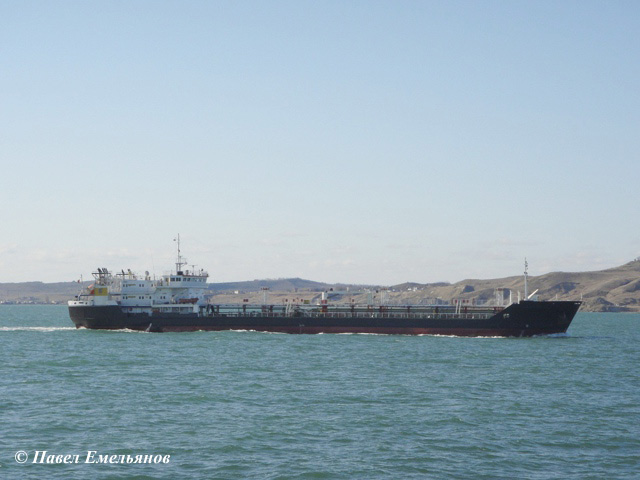

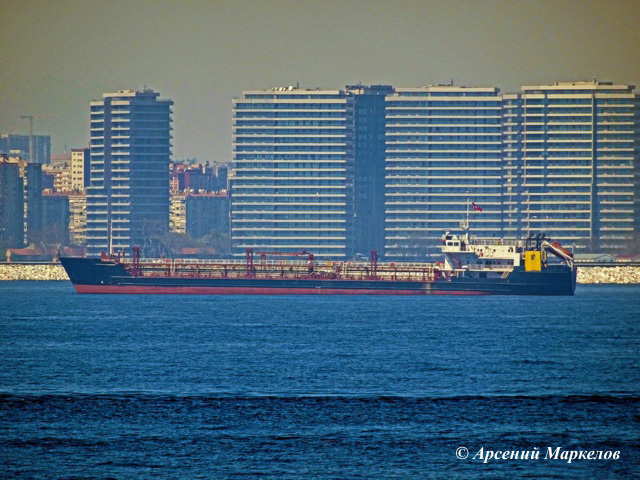

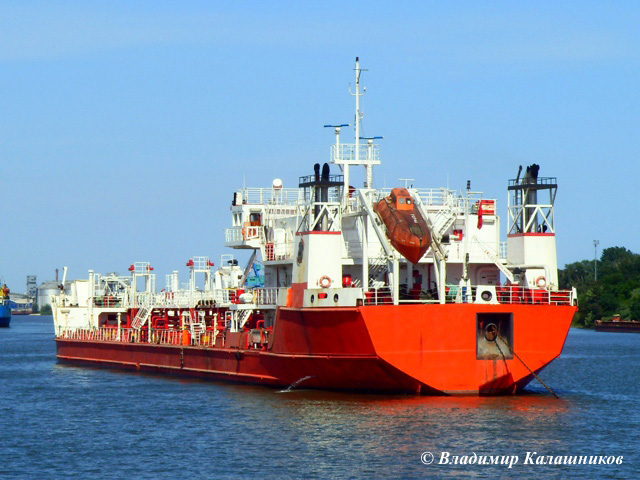

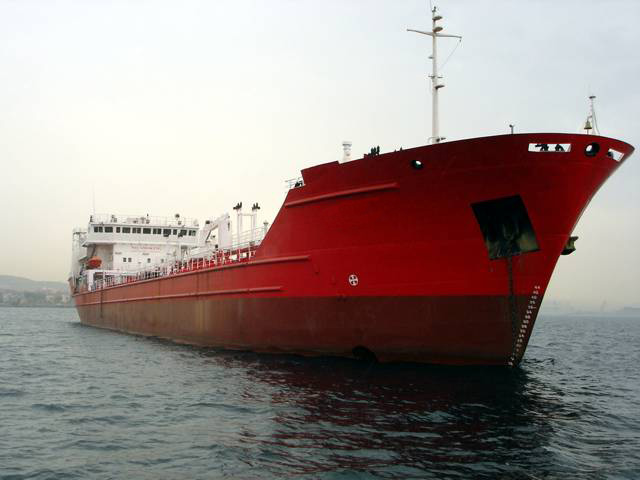

PROJECT ST19

4320 DWT product - tanker




Purpose - sea carriage of crude oil and petroleum products without restrictions for flash-point.



Laying of the keel Laid down Delivery Years of construction
    1 1994-2006


# Name Value

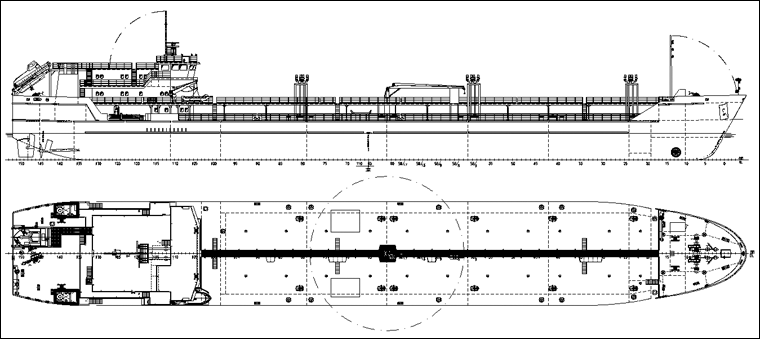

1. Main dimensions
Length overall, m 114.40
Length between PP, m 110.90
Breadth overall, m 16.30
Breadth scantlings, m 16.20
Depth, m 6.10
2. Draught (at sea / in river), m 4.16 / 3.60
3. Ballast draft, m 3.0
4. Deadweight (at sea / in river), t 4320 / 3270
5. Endurance, days 20
6. Range, nautical miles 3300
7. Number of tanks (cargo / slop) 12 (10 / 2)
8. Cargo tanks capacity (including slop tanks), m³ 4150
9. Cargo pumps, m³/h 3 x 500
10. Ballast tanks capacity, m³ 2310
11. RS class KM LU2 A3 oil carrier (ESP)
12. ME power, kW 2 x 1020

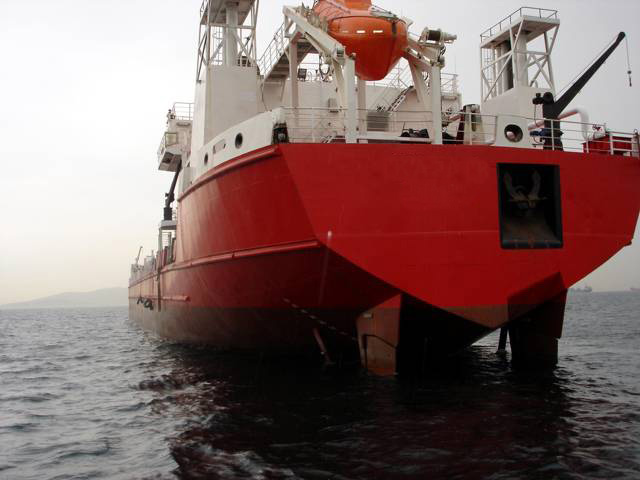

14. Rudder and propeller complex 2 FPP + 2 rudders
13. Bow thruster, kW 90
14. Auxiliary engines:
diesel-generators, kW 3 x 160
harbor diesel-generators, kW 1 x 144
emergency diesel-generator, kW 1 x 144
15. Crew / berth, pers. 13 / 15
16. Speed, knots 11.5 ±0.3
